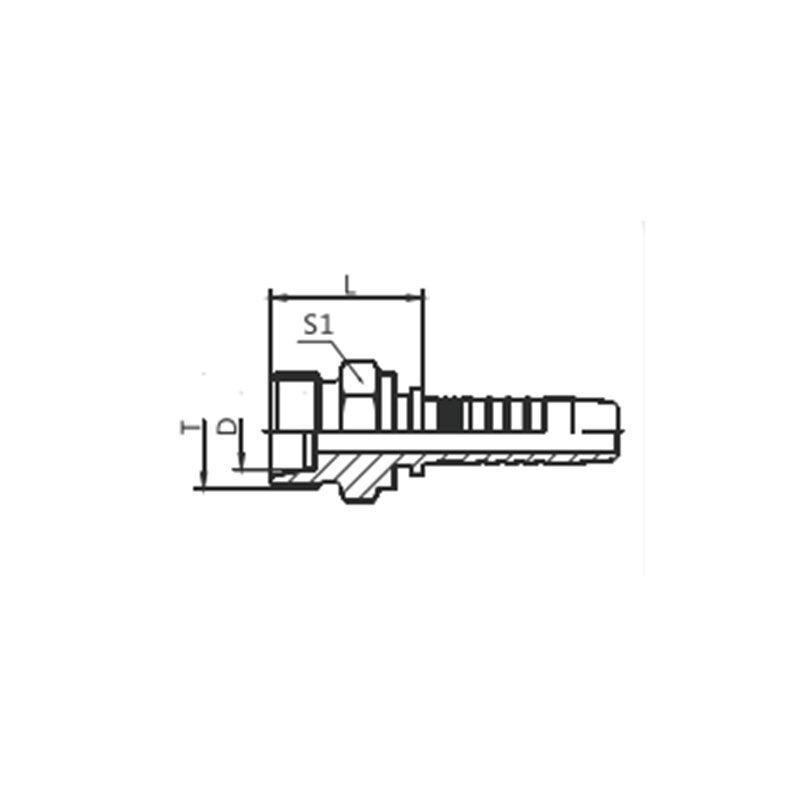

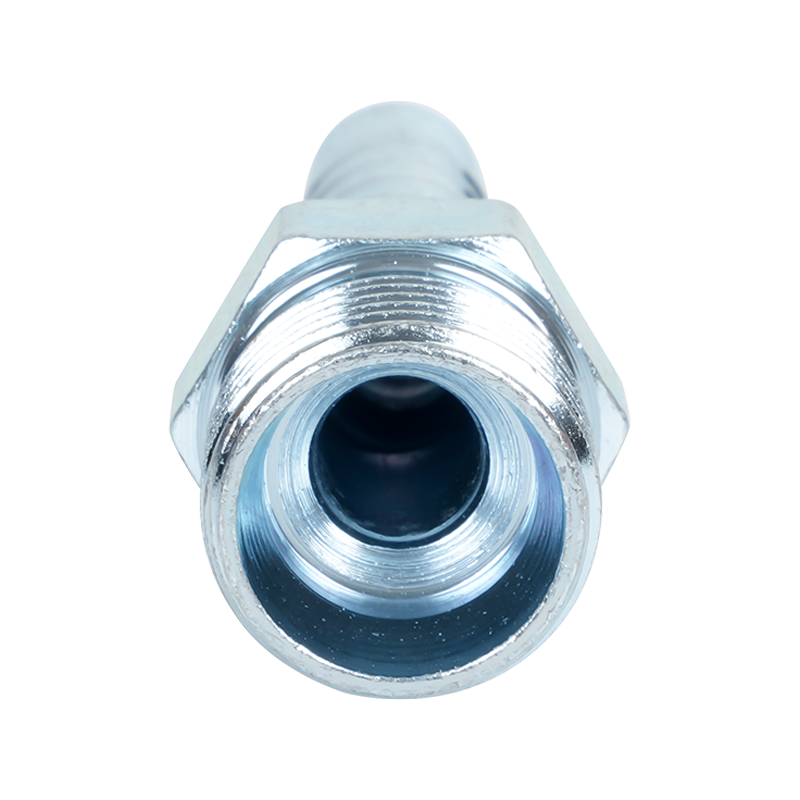

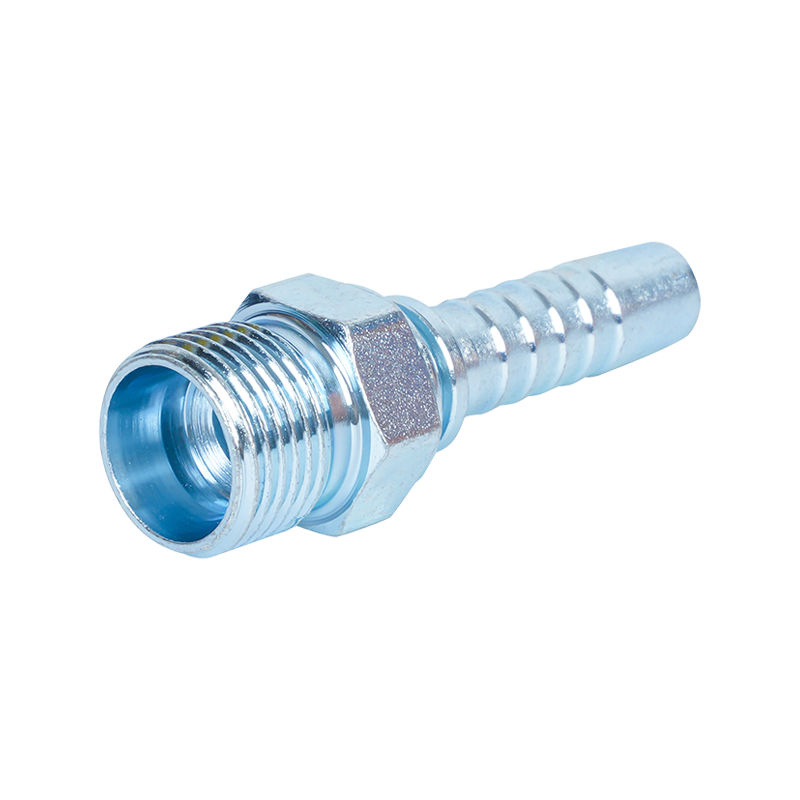

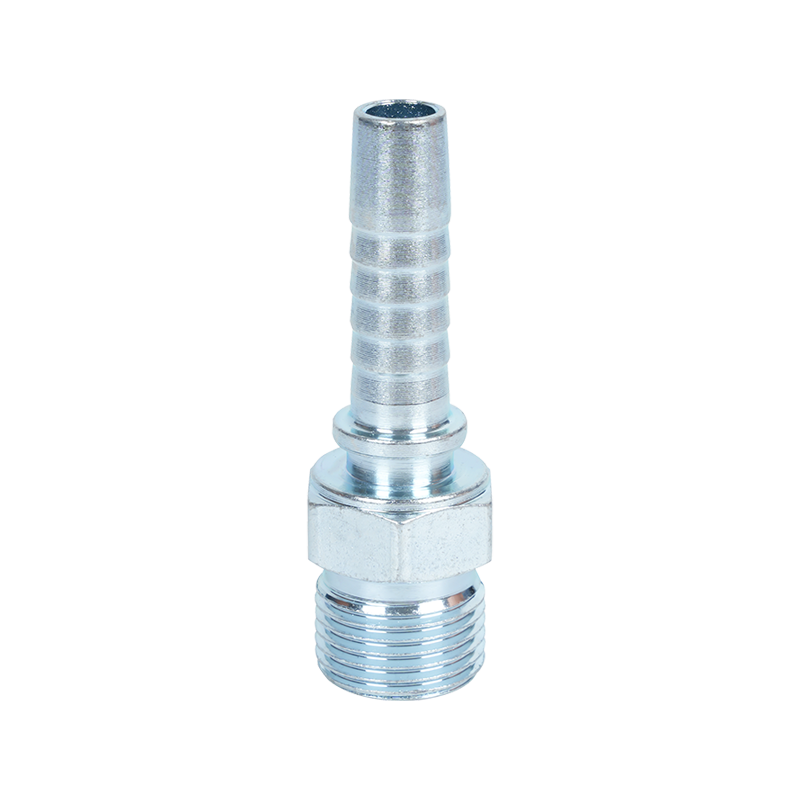

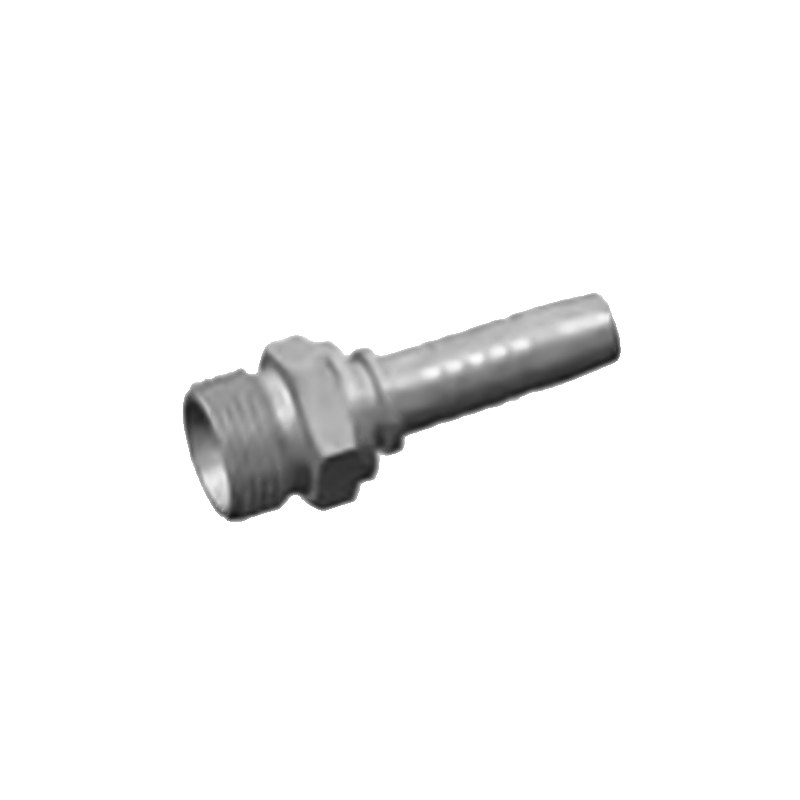

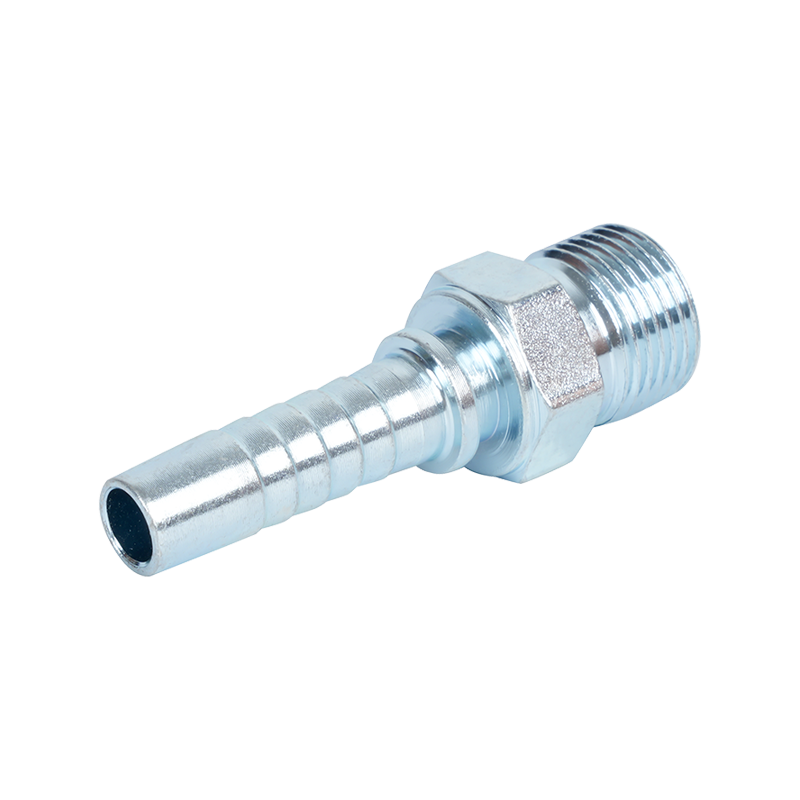

Metric Male 24°Cone Set L.T.ISO 84341-1-DIN3861
PART NO. |
T |
HOSE BORE |
TUBE O.D |
|
||||
THREAD T |
DN |
DASH |
L |
|
D |
S1 |
||
S10411-12-04 |
M12X1.5 |
6 |
04 |
6 |
20.5 |
|
6 |
14 |
S10411-14-04 |
M14X1.5 |
6 |
04 |
8 |
20.5 |
|
8 |
17 |
S10411-14-05 |
M14X1.5 |
8 |
05 |
8 |
21.5 |
|
8 |
17 |
S10411-16-04 |
M16X1.5 |
6 |
04 |
10 |
22.5 |
|
10 |
17 |
S10411-16-05 |
M16X1.5 |
8 |
05 |
10 |
22.5 |
|
10 |
17 |
S10411-16-06 |
M16X1.5 |
10 |
06 |
10 |
23.5 |
|
10 |
17 |
S10411-18-05 |
M18X1.5 |
8 |
05 |
12 |
23.5 |
|
12 |
19 |
S10411-18-06 |
M18X1.5 |
10 |
06 |
12 |
23.5 |
|
12 |
19 |
S10411-22-06 |
M22X1.5 |
10 |
06 |
15 |
24.5 |
|
15 |
24 |
S10411-22-08 |
M22X1.5 |
13 |
08 |
15 |
25 |
|
15 |
24 |
S10411-26-08 |
M26X1.5 |
13 |
08 |
18 |
26.5 |
|
18 |
27 |
S10411-26-10 |
M26X1.5 |
16 |
10 |
18 |
27 |
|
18 |
27 |
S10411-30-10 |
M30X2 |
16 |
10 |
22 |
30 |
|
22 |
32 |
S10411-30-12 |
M30X2 |
19 |
12 |
22 |
30 |
|
22 |
32 |
S10411-36-16 |
M36X2 |
25 |
16 |
28 |
33 |
|
28 |
41 |
S10411-45-20 |
M45X2 |
32 |
20 |
35 |
38 |
|
35 |
46 |
S10411-52-24 |
M52X2 |
38 |
24 |
42 |
38.5 |
|
42 |
55 |
Note:1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is S10412-XX-XX. |
