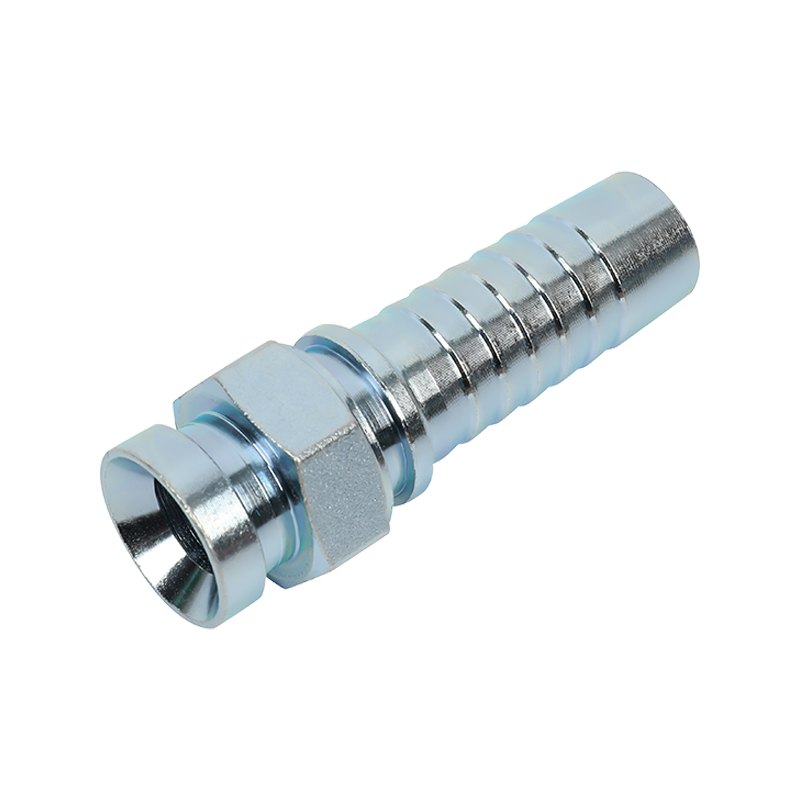

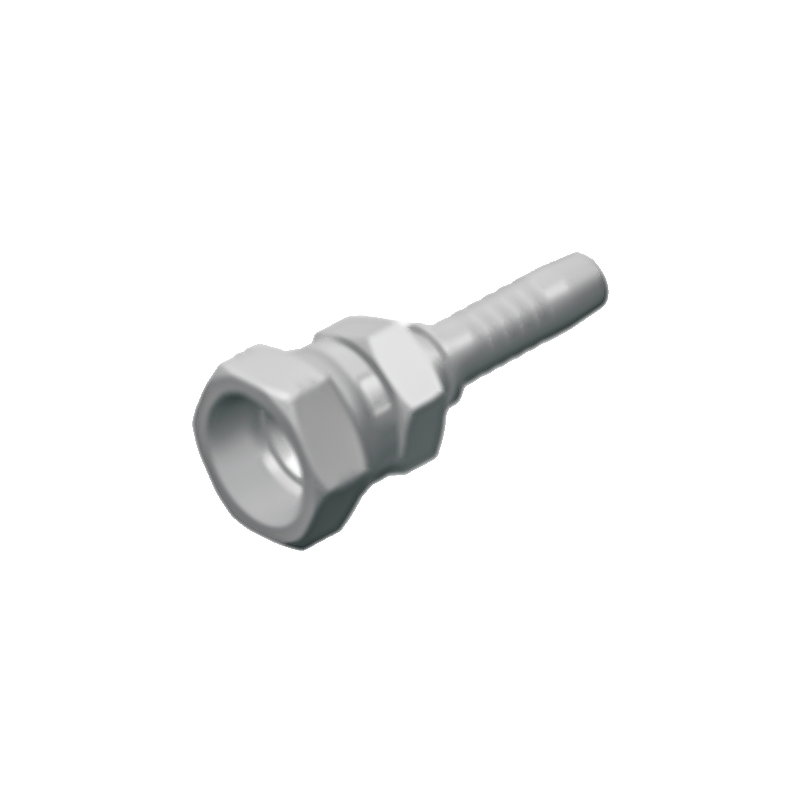

JIC Female 74°Cone Seat Double Hexagon SAE J514
PART NO. |
T |
HOSE BORE |
|

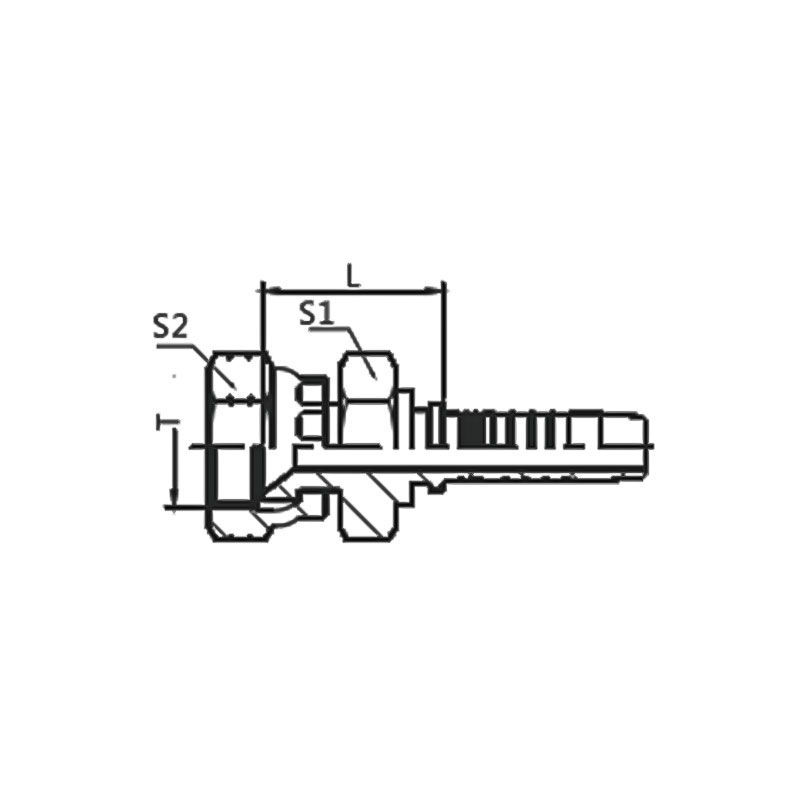

DIMENSIONS |
||||
THREAD T |
DN |
DASH |
|
L |
|
S1 |
S2 |
|
S26711D-04-04 |
7/16"X20 |
6 |
04 |
|
20 |
|
14 |
14 |
S26711D-05-04 |
1/2"X20 |
6 |
04 |
|
20.5 |
|
17 |
17 |
S26711D-06-04 |
9/16"X18 |
6 |
04 |
|
21 |
|
19 |
19 |
S26711D-06-06 |
9/16"X18 |
10 |
06 |
|
21 |
|
19 |
19 |
S26711D-08-06 |
3/4 "X16 |
10 |
06 |
|
25 |
|
24 |
22 |
S26711D-08-08 |
3/4"X16 |
13 |
08 |
|
24.5 |
|
24 |
22 |
S26711D-08-10 |
3/4"X16 |
16 |
10 |
|
25.5 |
|
24 |
22 |
S26711D-10-08 |
7/8"X14 |
13 |
08 |
|
28 |
|
27 |
27 |
S26711D-10-10 |
7/8"X14 |
16 |
10 |
|
29 |
|
27 |
27 |
S26711D-12-12 |
1.1/16"X12 |
19 |
12 |
|
31.5 |
|
32 |
32 |
S26711D-16-12 |
1.5/16"X12 |
19 |
12 |
|
33.5 |
|
41 |
41 |
S26711D-16-16 |
1.5/16"X12 |
25 |
16 |
|
34.5 |
|
41 |
41 |
S26711D-16-20 |
1.5/16"X12 |
32 |
20 |
|
36.5 |
|
41 |
41 |
S26711D-20-20 |
1.5/8"X12 |
32 |
20 |
|
39 |
|
50 |
50 |
Note:1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is S26712D-XX-XX. |
