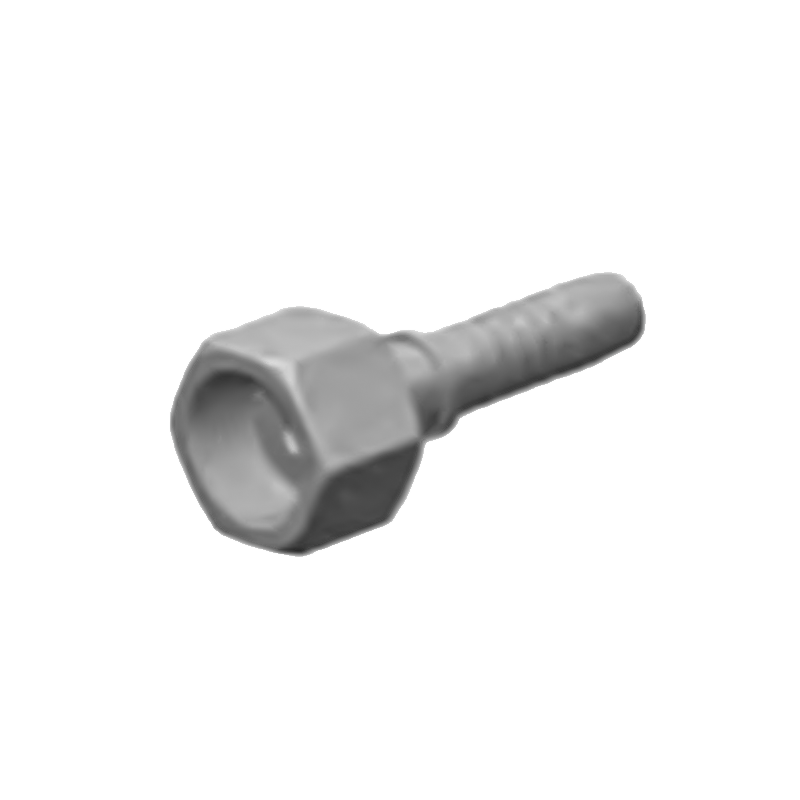

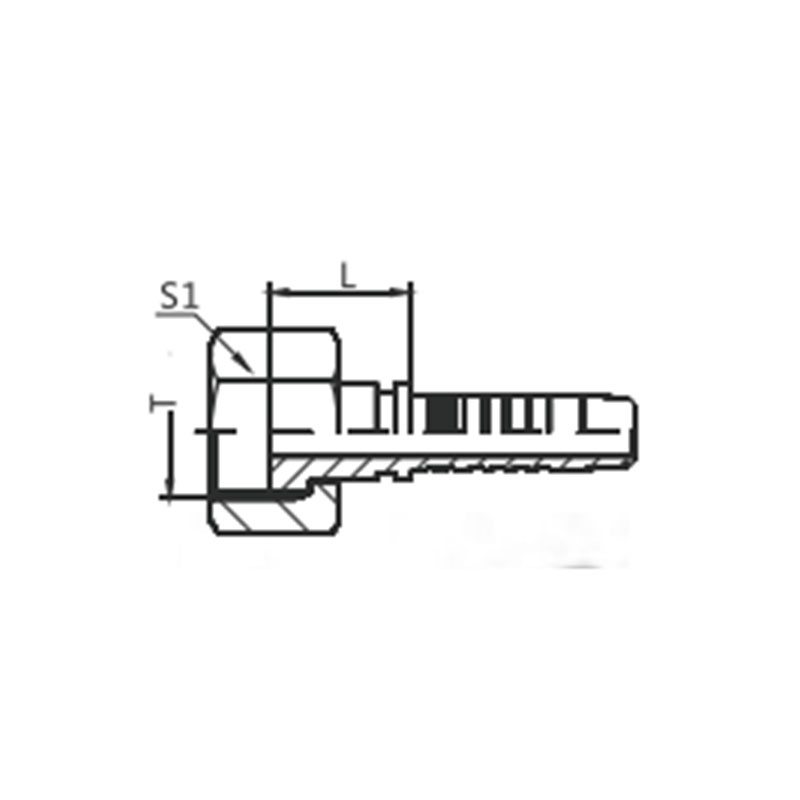

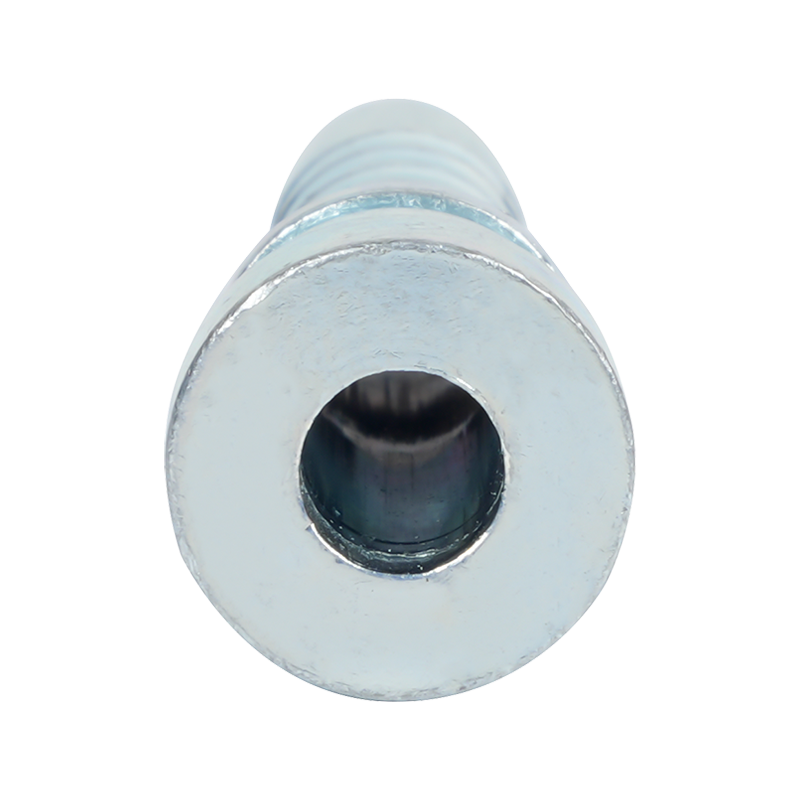

Metric Female Flat Seat
Reference REF.GB/T 9065.3
PART NO. |
T |
HOSE BORE |
|
DIMENSIONS |
||||
THREAD T |
DN |
DASH |
|
L |
|
|
S1 |
|
S20211-14-04T |
M14X1.5 |
6 |
04 |
|
15.5 |
|
|
17 |
S20211-14-05 |
M14X1.5 |
8 |
05 |
|
15.5 |
|
|
19 |
S20211-16-05T |
M16X1.5 |
8 |
05 |
|
16.5 |
|
|
19 |
S20211-16-06 |
M16X1.5 |
10 |
06 |
|
16.5 |
|
|
22 |
S20211-18-06T |
M18X1.5 |
10 |
06 |
|
17.5 |
|
|
22 |
S20211-22-08T |
M22X1.5 |
13 |
08 |
|
18.5 |
|
|
27 |
S20211-27-10T |
M27X1.5 |
16 |
10 |
|
22 |
|
|
32 |
S20211-30-12T |
M30X1.5 |
19 |
12 |
|
21 |
|
|
36 |
S20211-36-12T |
M36X2 |
19 |
12 |
|
21 |
|
|
41 |
S20211-39-16T |
M39X2 |
25 |
16 |
|
23.5 |
|
|
46 |
S20211-45-20T |
M45X2 |
32 |
20 |
|
24.5 |
|
|
55 |
S20211-52-24T |
M52X2 |
38 |
24 |
|
25 |
|
|
60 |
S20211-60-28T |
M60X2 |
45 |
28 |
|
26 |
|
|
70 |
S20211-64-32T |
M64X2 |
51 |
32 |
|
27 |
|
|
75 |
Note:1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is S20212-XX-XX. |
