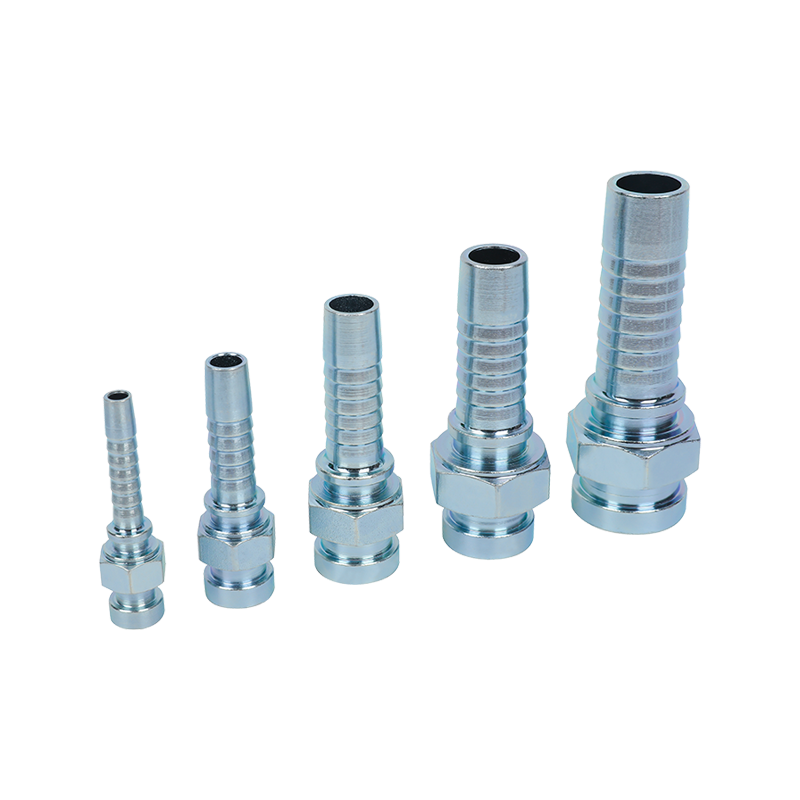

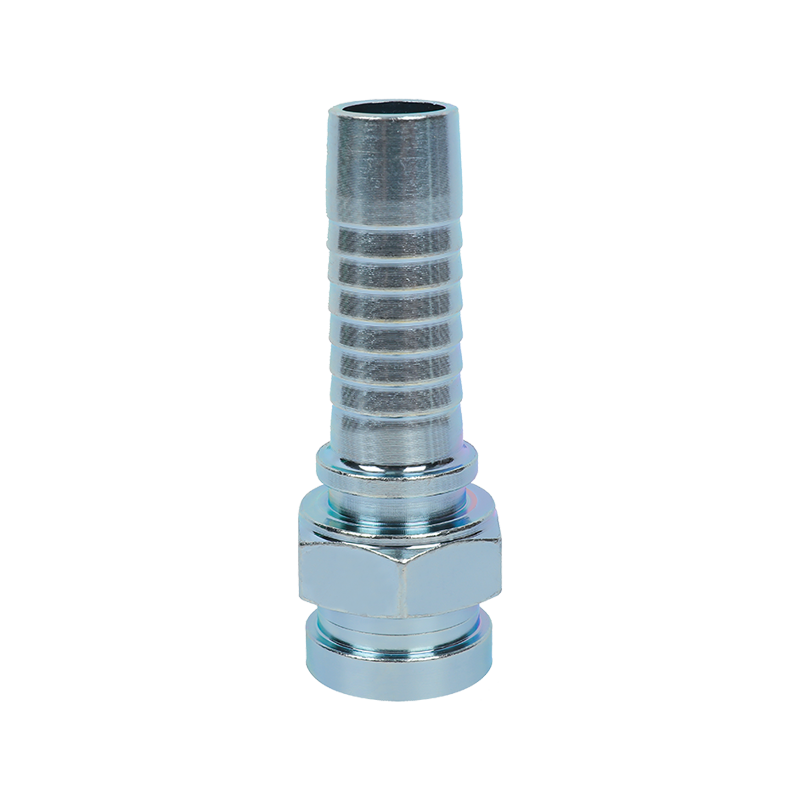

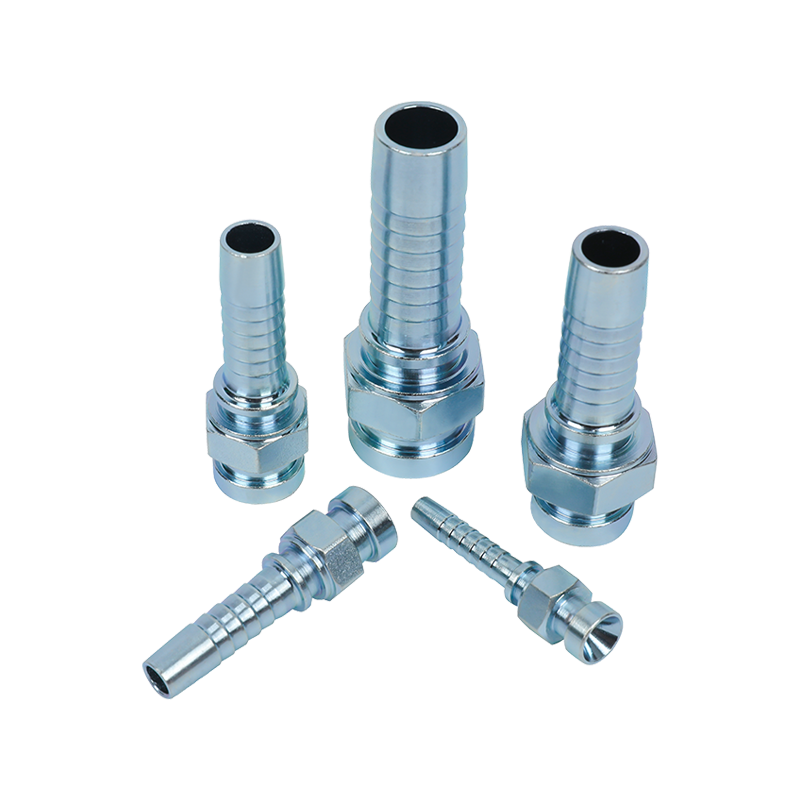

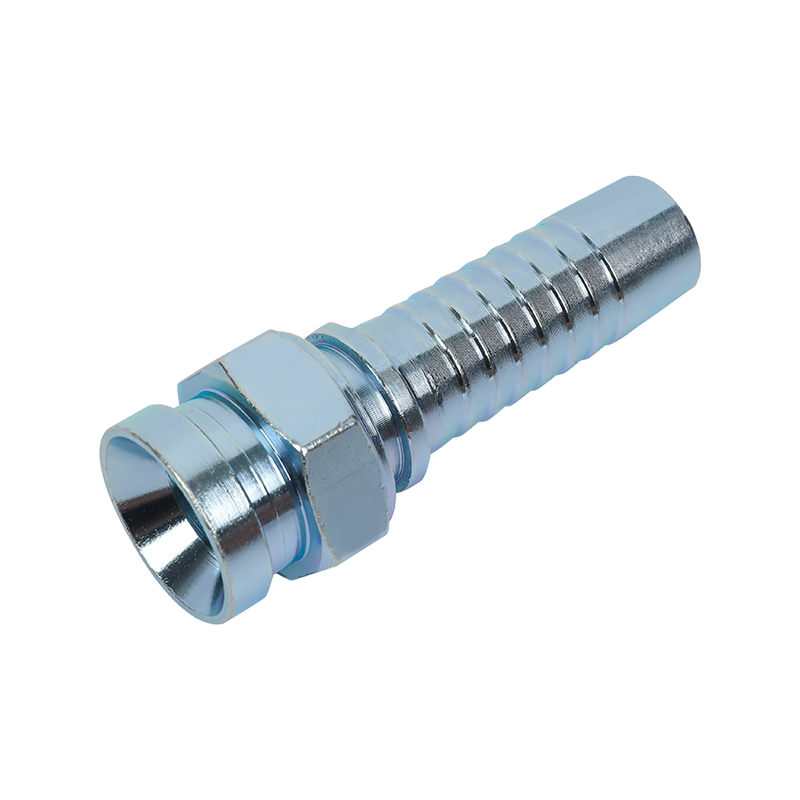

JIS Metric Female 60°Cone Seat
PART NO. |
T |
HOSE BORE |
|

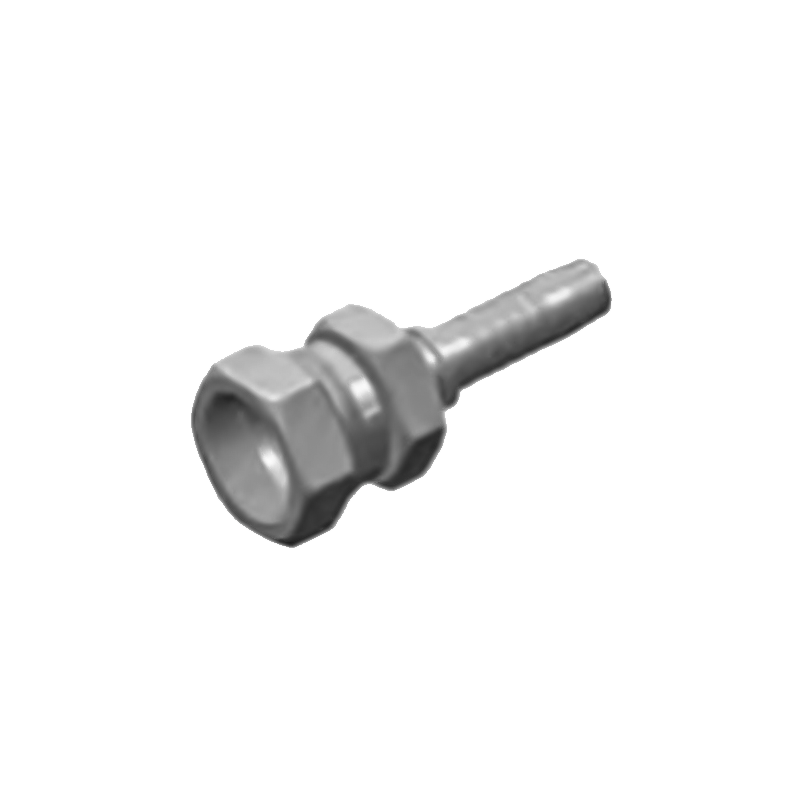

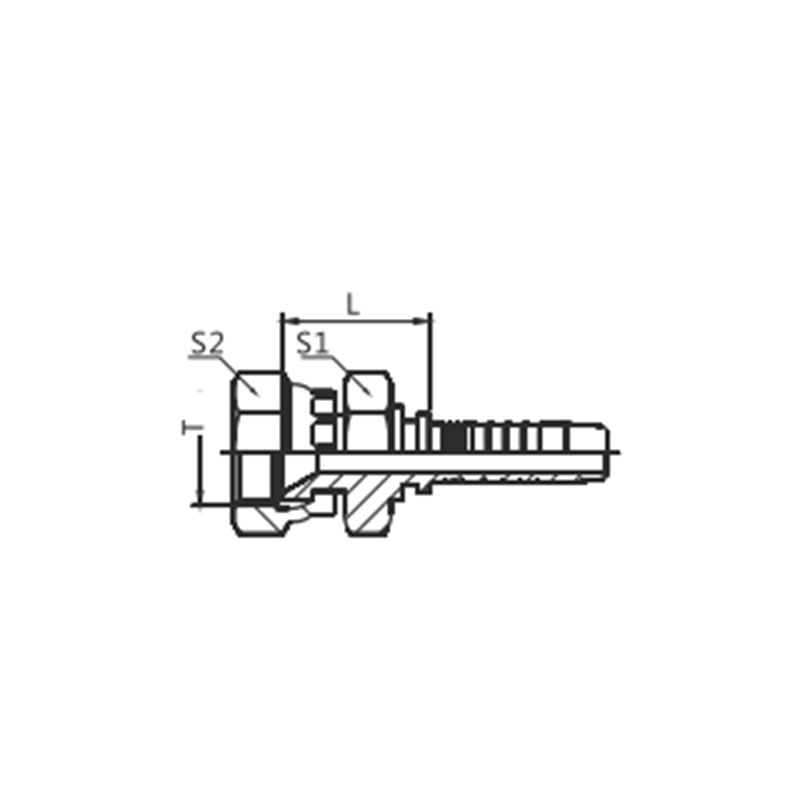

DIMENSIONS |
||||
THREAD T |
DN |
DASH |
|
L |
S1 |
S2 |
|
|
S28611-12-04 |
M12X1.5 |
6 |
04 |
|
20.5 |
17 |
17 |
|
S28611-14-04 |
M14X1.5 |
6 |
04 |
|
21 |
19 |
19 |
|
S28611-14-06 |
M14X1.5 |
10 |
06 |
|
21 |
19 |
19 |
|
S28611-16-04 |
M16X1.5 |
6 |
04 |
|
24 |
22 |
22 |
|
S28611-16-05 |
M16X1.5 |
8 |
05 |
|
24 |
22 |
22 |
|
S28611-16-06 |
M16X1.5 |
10 |
06 |
|
24 |
22 |
22 |
|
S28611-18-06 |
M18X1.5 |
10 |
06 |
|
25 |
24 |
24 |
|
S28611-18-08 |
M18X1.5 |
13 |
08 |
|
25.5 |
24 |
24 |
|
S28611-20-08 |
M20X1.5 |
13 |
08 |
|
28.5 |
27 |
27 |
|
S28611-22-08 |
M22X1.5 |
13 |
08 |
|
25.5 |
27 |
27 |
|
S28611-24-08 |
M24X1.5 |
13 |
08 |
|
28 |
32 |
32 |
|
S28611-24-10 |
M24X1.5 |
16 |
10 |
|
28.5 |
32 |
32 |
|
S28611-27-10 |
M27X1.5 |
16 |
10 |
|
28.5 |
32 |
32 |
|
S28611-30-12 |
M30X1.5 |
19 |
12 |
|
28.5 |
36 |
36 |
|
S28611-33-12 |
M33X1.5 |
19 |
12 |
|
31 |
41 |
41 |
|
S28611-33-16 |
M33X1.5 |
25 |
16 |
|
32 |
41 |
41 |
|
S28611-36-20 |
M36X1.5 |
32 |
20 |
|
35.5 |
46 |
46 |
|
Note:1 .For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is S28612-XX-XX. |
||||||||
