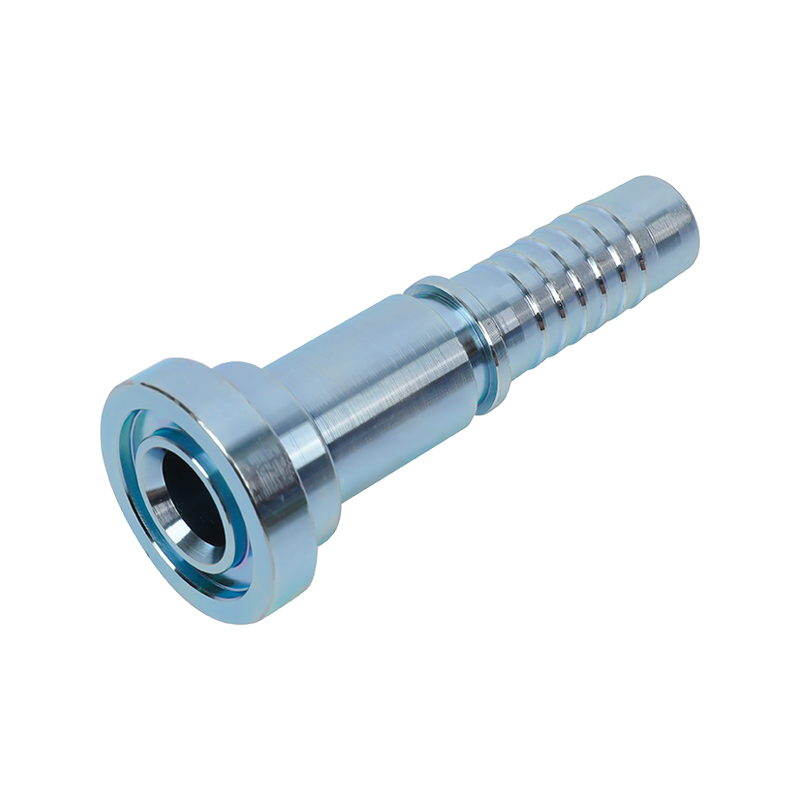

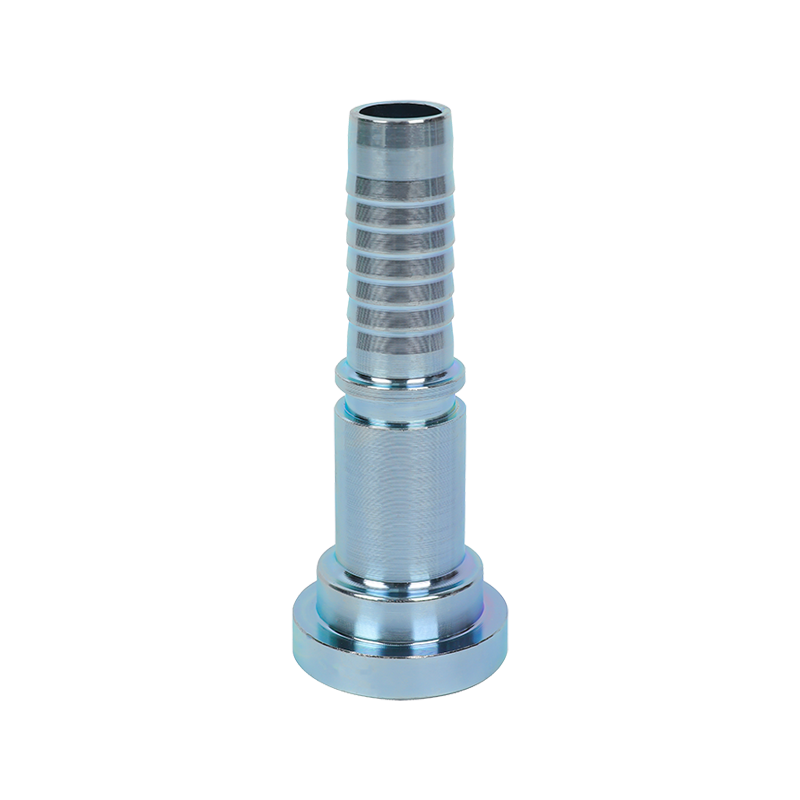

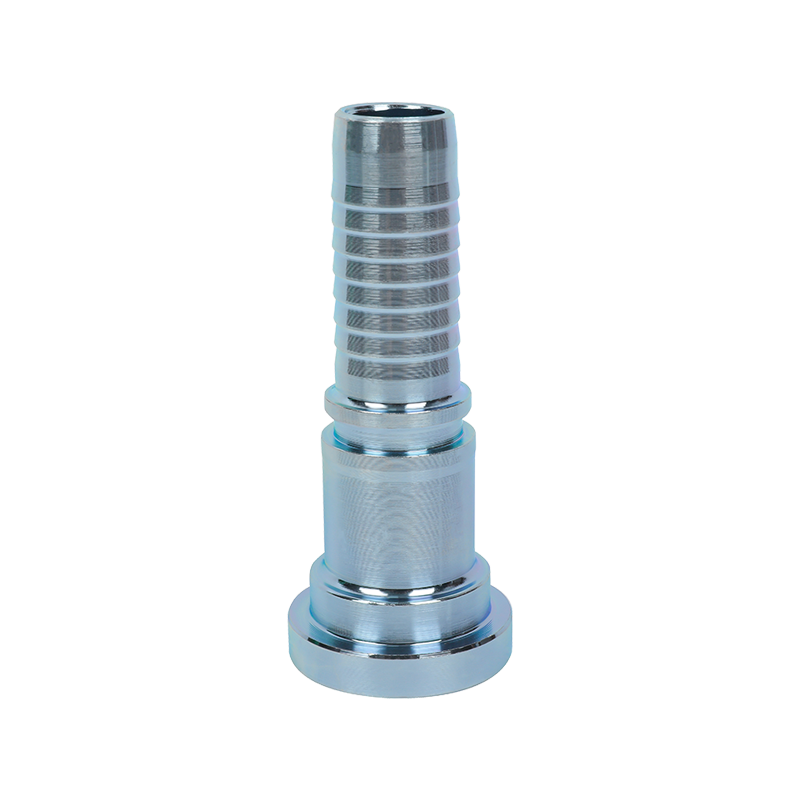

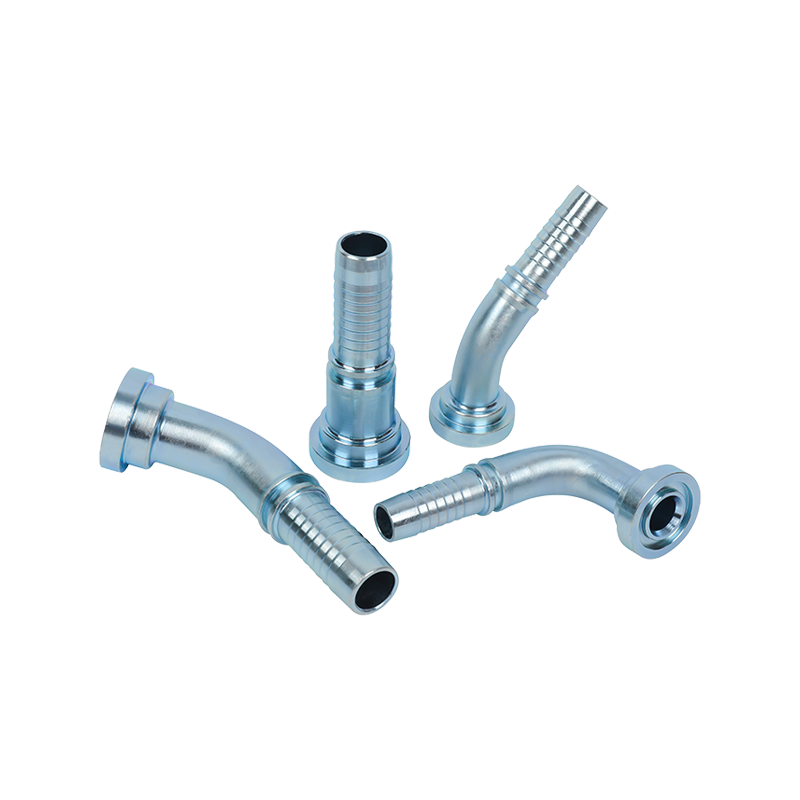

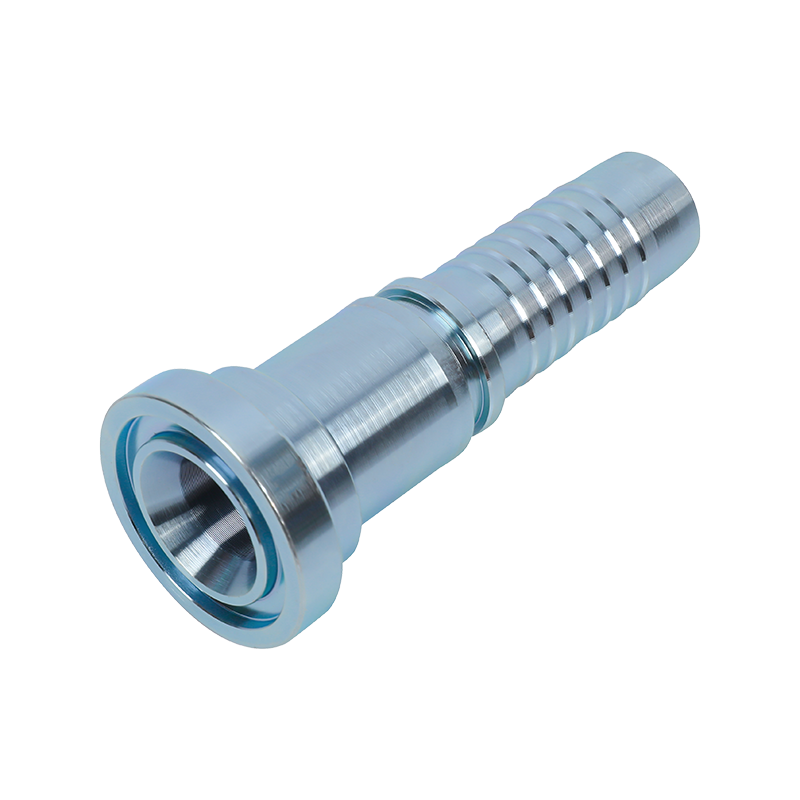

SAE Flange 6000 PSI Code 62 ISO 12151-3-SAE J516
PART NO. |
FLANGE SIZE |
HOSE BORE |
|

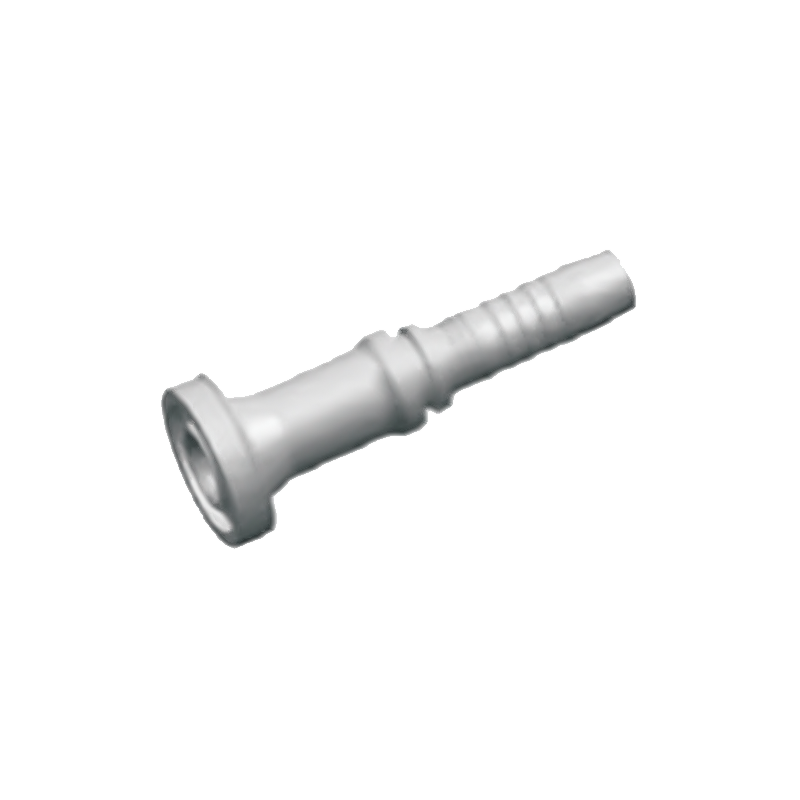

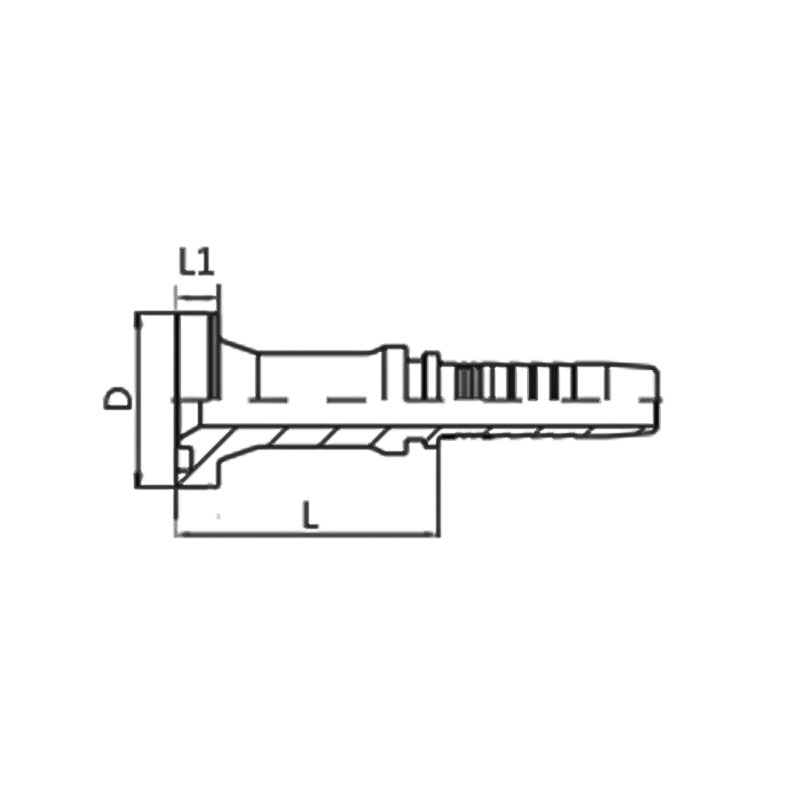

DIMENSIONS |
||||
DN |
DASH |
|
L |
|
D |
L1 |
||
S87611-08-08 |
1/2" |
13 |
08 |
|
47 |
|
31.7 |
7.75 |
S87611-12-10 |
3/4" |
16 |
10 |
|
51 |
|
41.3 |
8.76 |
S87611-12-12 |
3/4" |
19 |
12 |
|
51 |
|
41.3 |
8.76 |
S87611-16-12 |
1" |
19 |
12 |
|
56 |
|
47.6 |
9.53 |
S87611-16-16 |
1" |
25 |
16 |
|
57 |
|
47.6 |
9.53 |
S87611-16-20 |
1" |
32 |
20 |
|
58 |
|
47.6 |
9.53 |
S87611-20-16 |
1.1/4" |
25 |
16 |
|
65 |
|
54 |
10.29 |
S87611-20-20 |
1.1/4" |
32 |
20 |
|
66 |
|
54 |
10.29 |
S87611-24-20 |
1.1/2" |
32 |
20 |
|
75 |
|
63.5 |
12.57 |
S87611-24-24 |
1.1/2" |
38 |
24 |
|
75 |
|
63.5 |
12.57 |
S87611-32-24 |
2" |
38 |
24 |
|
85 |
|
79.4 |
12.57 |
S87611-32-32 |
2" |
51 |
32 |
|
85 |
|
79.4 |
12.57 |
Note:1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is S87612-XX-XX. |
