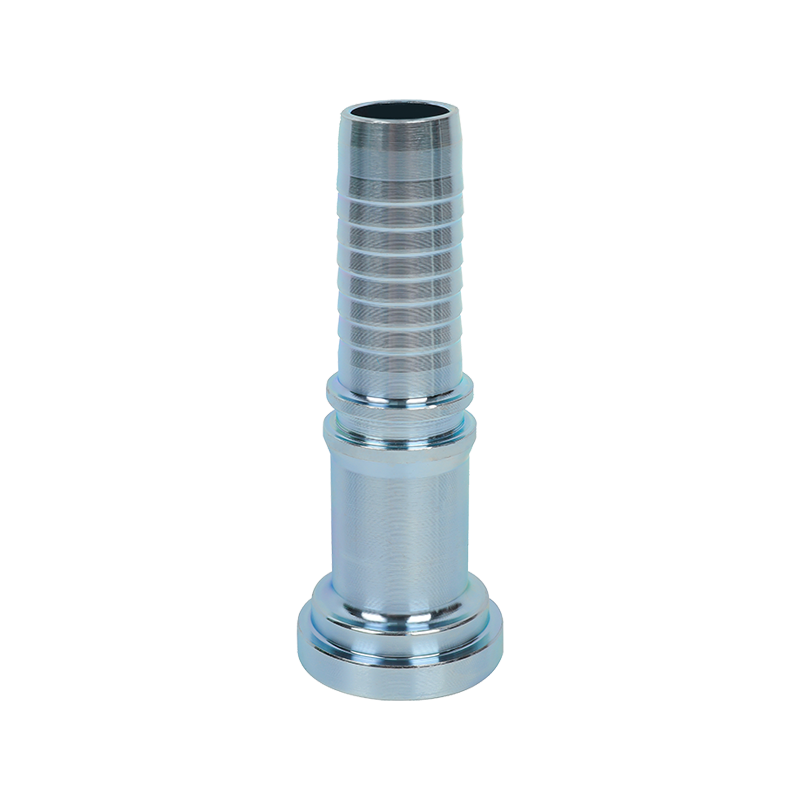

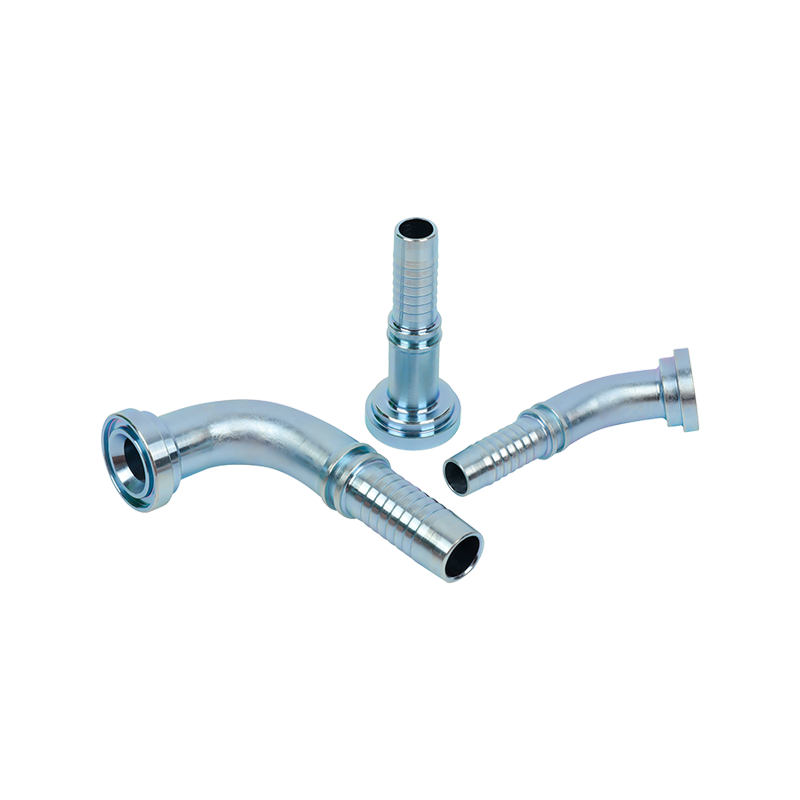

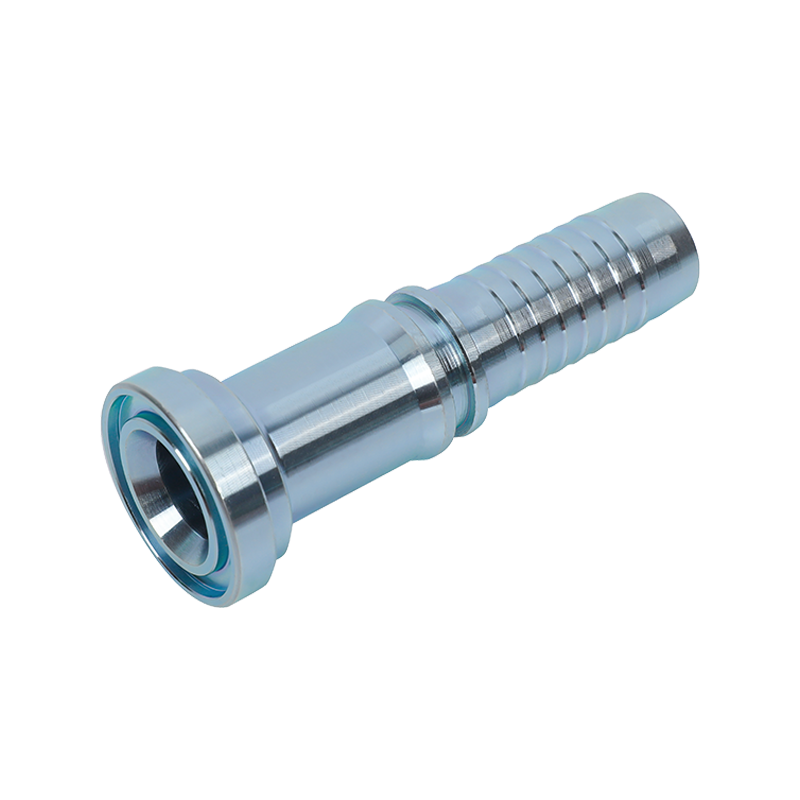

SAE Flange 3000 PSI Code 61 ISO 12151-3-SAE J516

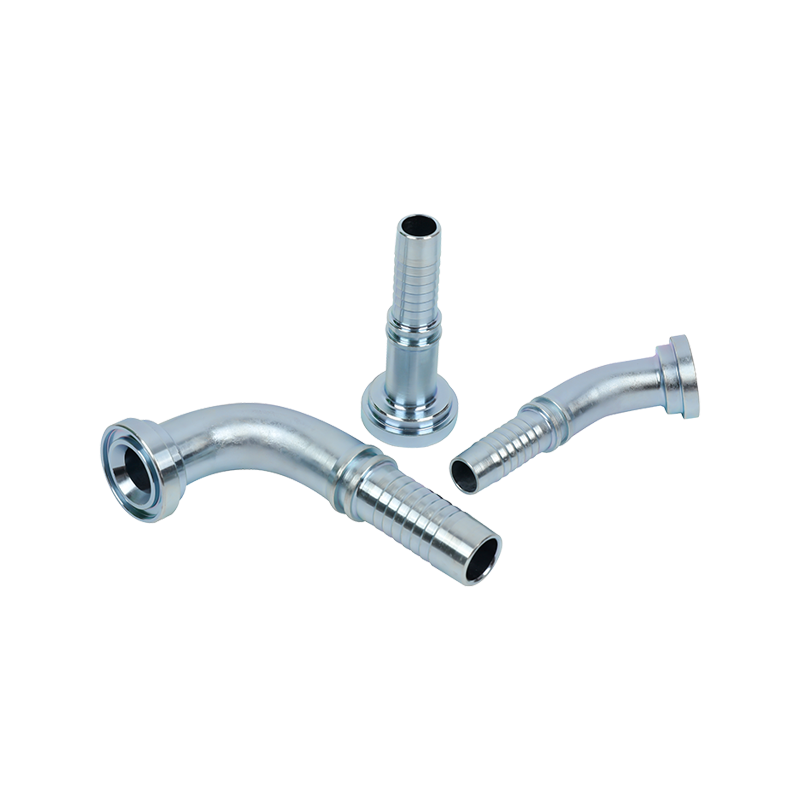

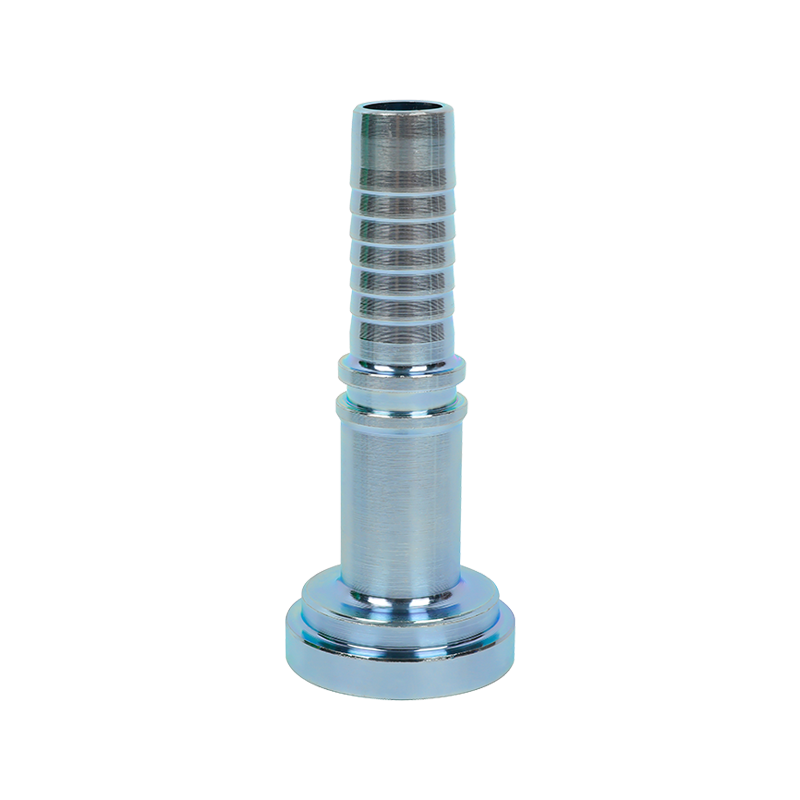

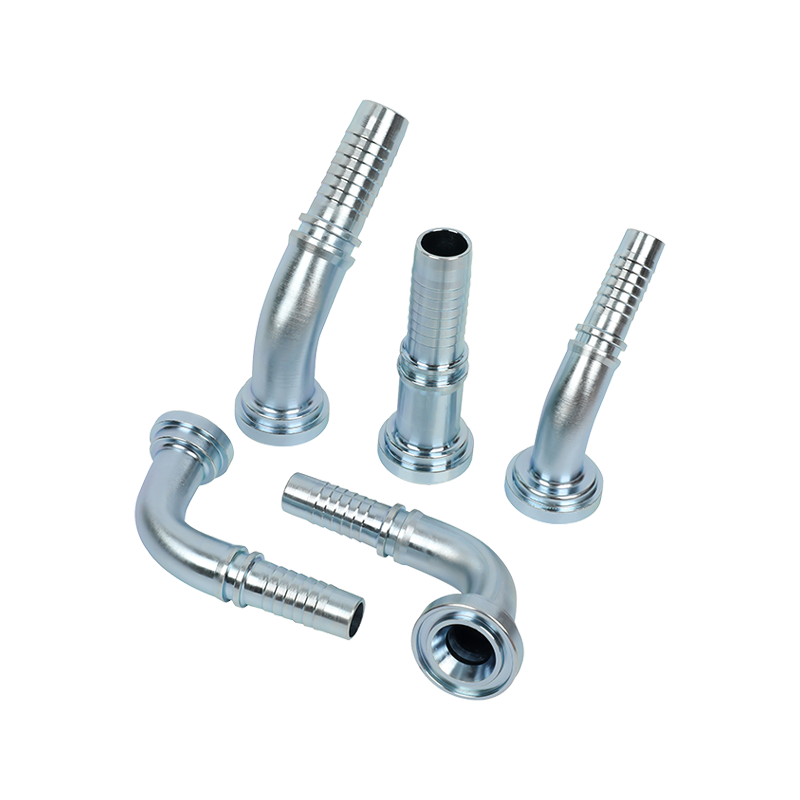

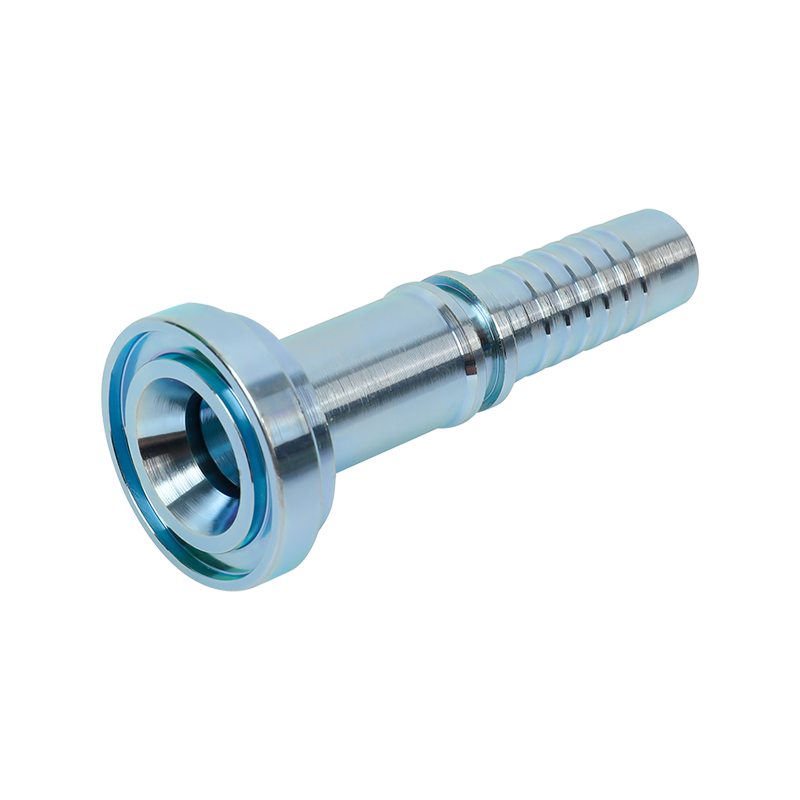

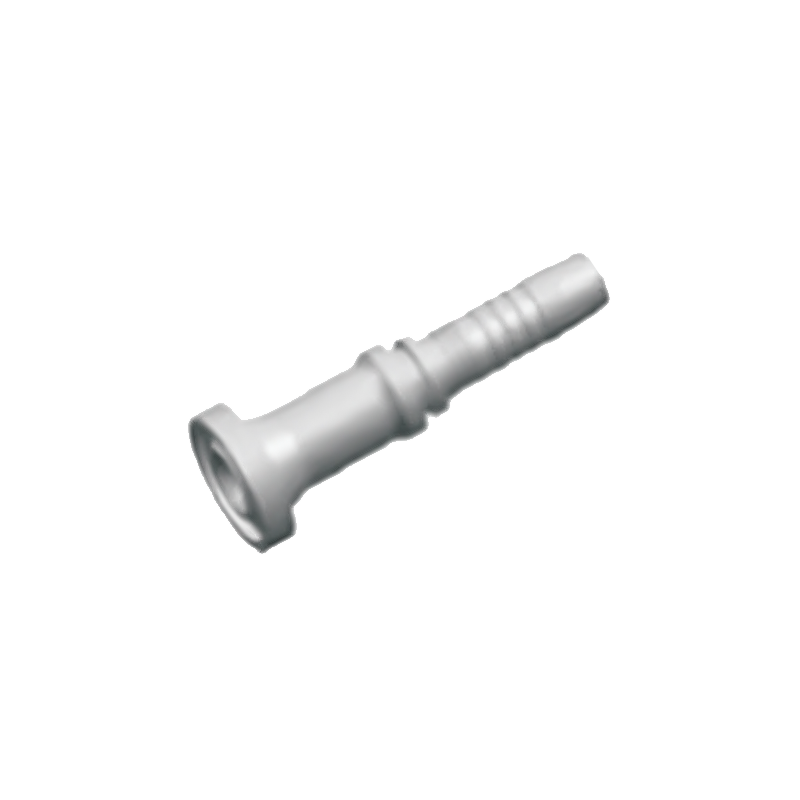

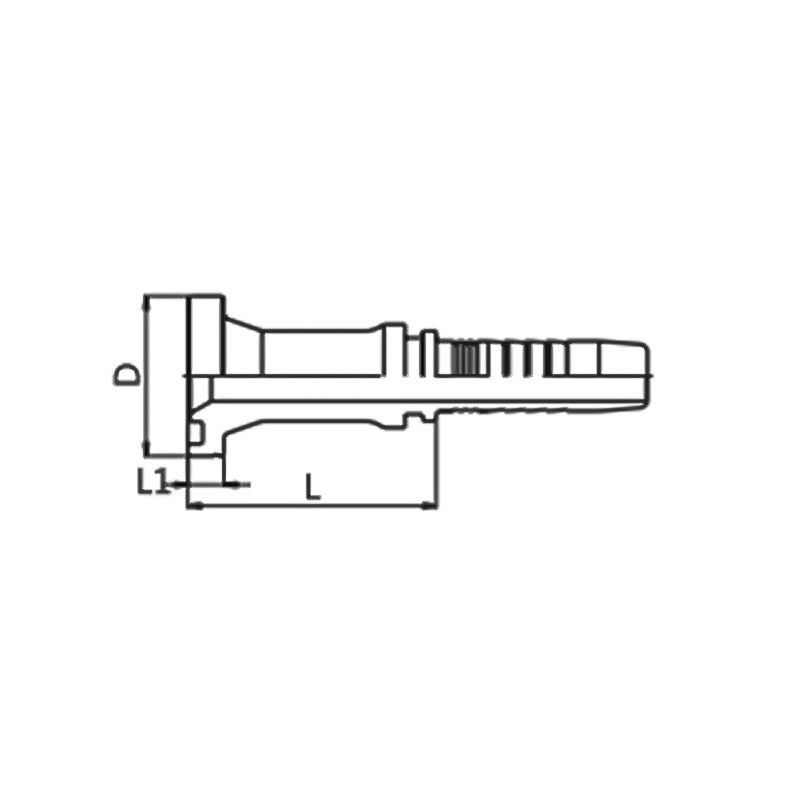

PART NO. |
T |
HOSE BORE |
|
|
||||
THREAD T |
DN |
DASH |
|
L |
|
D |
L1 |
|
S87311-08-08 |
1/2" |
13 |
08 |
|
46 |
|
30.2 |
6.73 |
S87311-12-08 |
3/4" |
13 |
08 |
|
47 |
|
38.1 |
6.73 |
S87311-12-10 |
3/4" |
16 |
10 |
|
48 |
|
38.1 |
6.73 |
S87311-12-12 |
3/4" |
19 |
12 |
|
48 |
|
38.1 |
6.73 |
S87311-12-16 |
3/4" |
25 |
16 |
|
49 |
|
38.1 |
6.73 |
S87311-16-12 |
1" |
19 |
12 |
|
51 |
|
44.4 |
8 |
S87311-16-16 |
1" |
25 |
16 |
|
52 |
|
44.4 |
8 |
S87311-16-20 |
1" |
32 |
20 |
|
53 |
|
44.4 |
8 |
S87311-20-16 |
1.1/4" |
25 |
16 |
|
57 |
|
50.8 |
8 |
S87311-20-20 |
1.1/4" |
32 |
20 |
|
58 |
|
50.8 |
8 |
S87311-24-20 |
1.1/2" |
32 |
20 |
|
68 |
|
60.3 |
8 |
S87311-24-24 |
1.1/2" |
38 |
24 |
|
68 |
|
60.3 |
8 |
S87311-32-24 |
2" |
38 |
24 |
|
66 |
|
71.4 |
9.53 |
S87311-32-32 |
2" |
51 |
32 |
|
66 |
|
71.4 |
9.53 |
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is S87312-XX-XX. |
