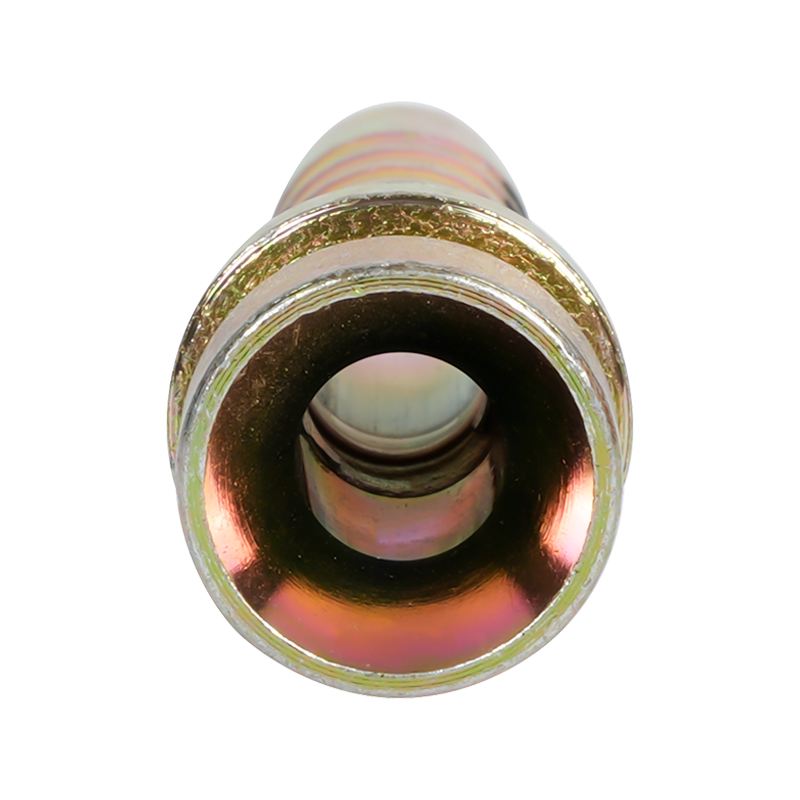

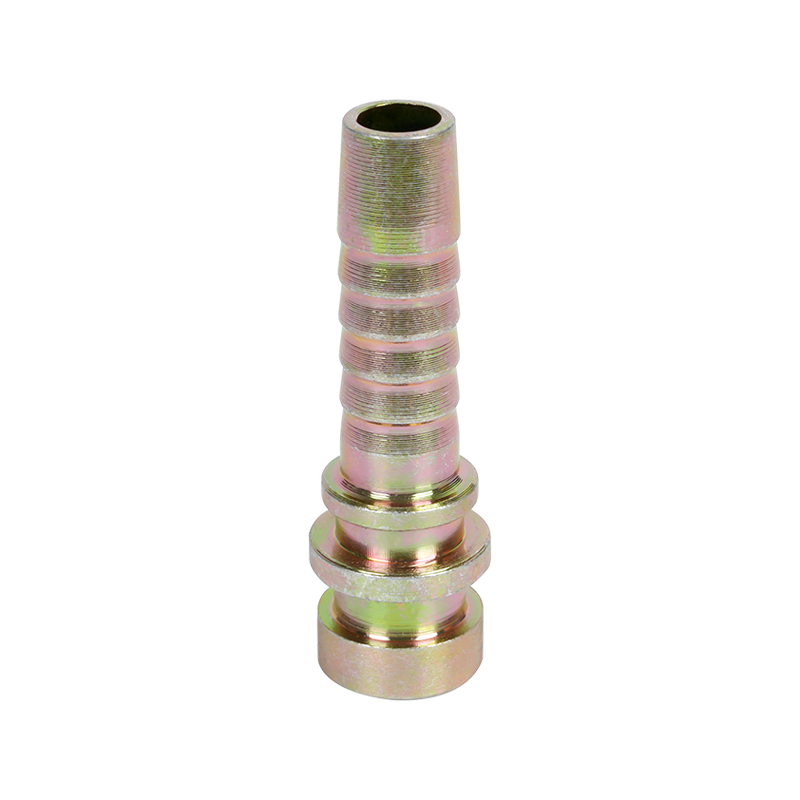

JIC GAS Female 60°Cone SeatJIS B8363
PART NO. |
T |
HOSE BORE |
|
DIMENSIONS |
||||
THREAD T |
DN |
DASH |
|
L |
|
S1 |
S2 |
|
S29611-04-04 |
G1/4"X19 |
6 |
04 |
|
21 |
|
19 |
19 |
S29611-04-05 |
G1/4"X19 |
8 |
05 |
|
21 |
|
19 |
19 |
S29611-06-04 |
G3/8"X19 |
6 |
04 |
|
23.5 |
|
22 |
22 |
S29611-06-06 |
G3/8"X19 |
10 |
06 |
|
23 |
|
22 |
22 |
S29611-08-06 |
G1/2"X14 |
10 |
06 |
|
26 |
|
27 |
27 |
S29611-08-08 |
G1/2"X14 |
13 |
08 |
|
26.5 |
|
27 |
27 |
S29611-10-10 |
G5/8"X14 |
16 |
10 |
|
31 |
|
30 |
30 |
S29611-12-10 |
G3/4"X14 |
16 |
10 |
|
31.5 |
|
32 |
32 |
S29611-12-12 |
G3/ " X14 |
19 |
12 |
|
31.5 |
|
32 |
32 |
S29611-16-16 |
G1"X11 |
25 |
16 |
|
32 |
|
41 |
41 |
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is S29612-XX-XX. |
