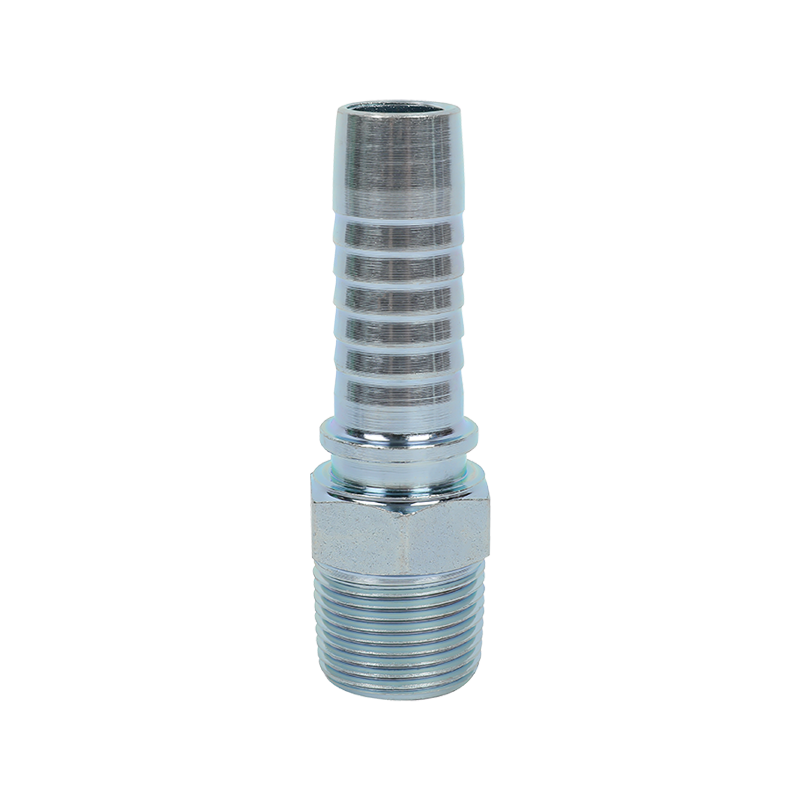

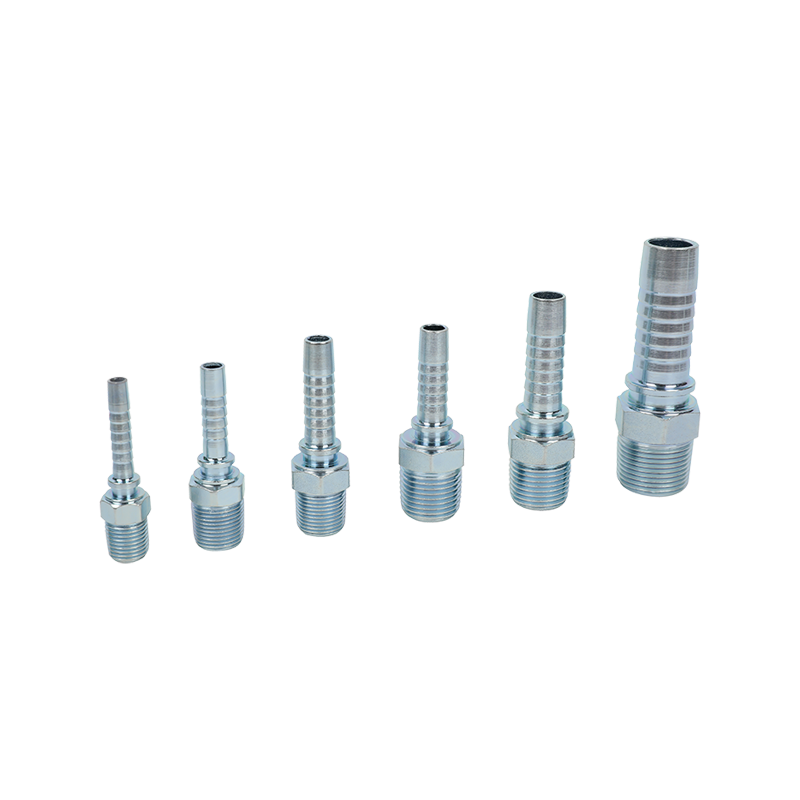

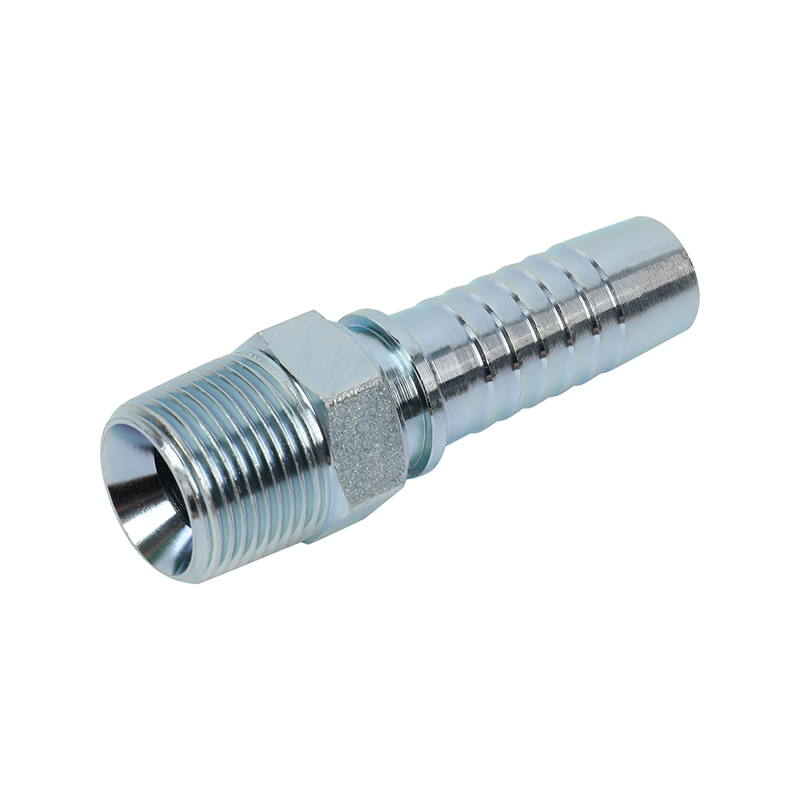

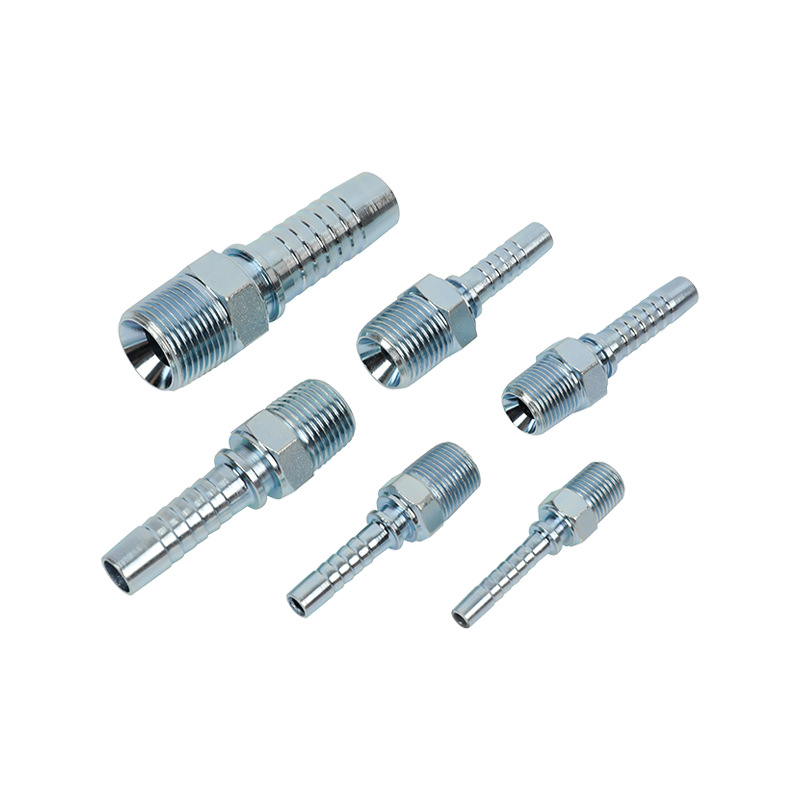

NPT Male
PART NO. |
T |
HOSE BORE |
|

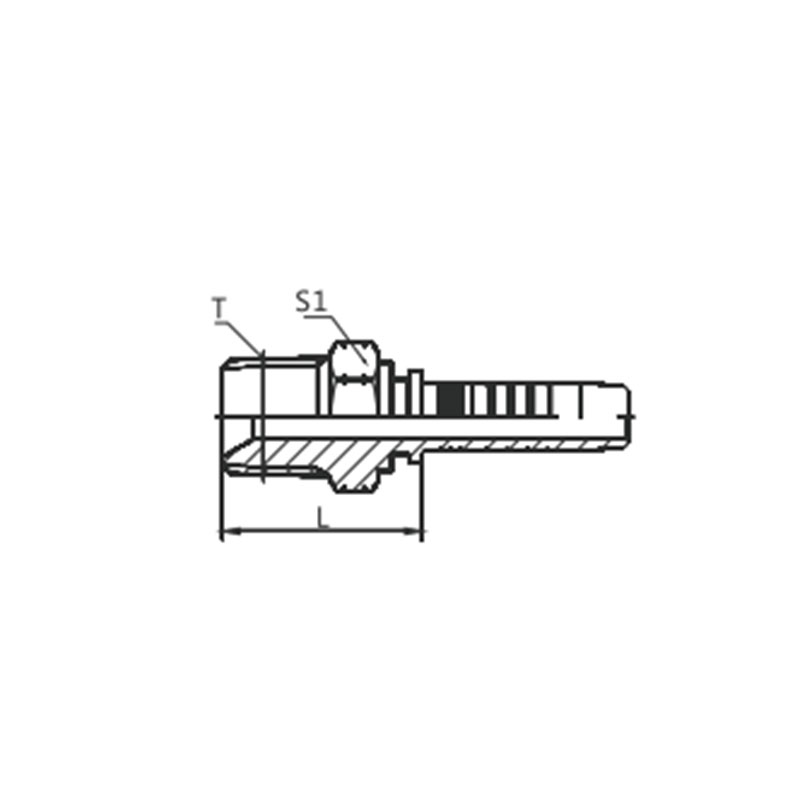

DIMENSIONS |
||||
THREAD T |
DN |
DASH |
|
L |
|
|
S1 |
|
S15611-02-04 |
NPT1/8"X27 |
6 |
04 |
|
18.5 |
|
|
12 |
S15611-04-04 |
NPTl/4"X18 |
6 |
04 |
|
22.5 |
|
|
17 |
S15611-04-05 |
NPT1/4"X18 |
8 |
05 |
|
22.5 |
|
|
17 |
S15611-04-06 |
NPT1/4"X18 |
10 |
06 |
|
22.5 |
|
|
17 |
S15611-06-04 |
NPT3/8"X18 |
6 |
04 |
|
23 |
|
|
19 |
S15611-06-05 |
NPT3/8"X18 |
8 |
05 |
|
23.5 |
|
|
19 |
S15611-06-06 |
NPT3/8"X18 |
10 |
06 |
|
23.9 |
|
|
19 |
S15611-06-08 |
NPT3/8"X18 |
13 |
08 |
|
24.4 |
|
|
19 |
S15611-08-06 |
NPT1/2"X14 |
10 |
06 |
|
26.5 |
|
|
22 |
S15611-08-08 |
NPTl/2"X14 |
13 |
08 |
|
26.5 |
|
|
22 |
S15611-08-10 |
NPT1/2"X14 |
16 |
10 |
|
28 |
|
|
22 |
S15611-12-08 |
NPT3/4"X14 |
13 |
08 |
|
29 |
|
|
27 |
S15611-12-10 |
NPT3/4"X14 |
16 |
10 |
|
29.5 |
|
|
27 |
S15611-12-12 |
NPT3/4"X14 |
19 |
12 |
|
30 |
|
|
27 |
S15611-12-16 |
NPT3/4"X14 |
25 |
16 |
|
31 |
|
|
32 |
S15611-16-10 |
NPT1"X11.5 |
16 |
10 |
|
33.5 |
|
|
36 |
S15611-16-12 |
NPT1"X11.5 |
19 |
12 |
|
34 |
|
|
36 |
S15611-16-16 |
NPT1"X11.5 |
25 |
16 |
|
35 |
|
|
36 |
S15611-20-16 |
NPTl.1/4"X11.5 |
25 |
16 |
|
37.5 |
|
|
46 |
S15611-20-20 |
NPT1.1/4"X11.5 |
32 |
20 |
|
38.5 |
|
|
46 |
S15611-24-24 |
NPT1.1/2"X11.5 |
38 |
24 |
|
40.5 |
|
|
50 |
S15611-32-32 |
NPT2"X11.5 |
51 |
32 |
|
43.5 |
|
|
65 |
Note:1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is S15612-XX-XX. |
||||||||
