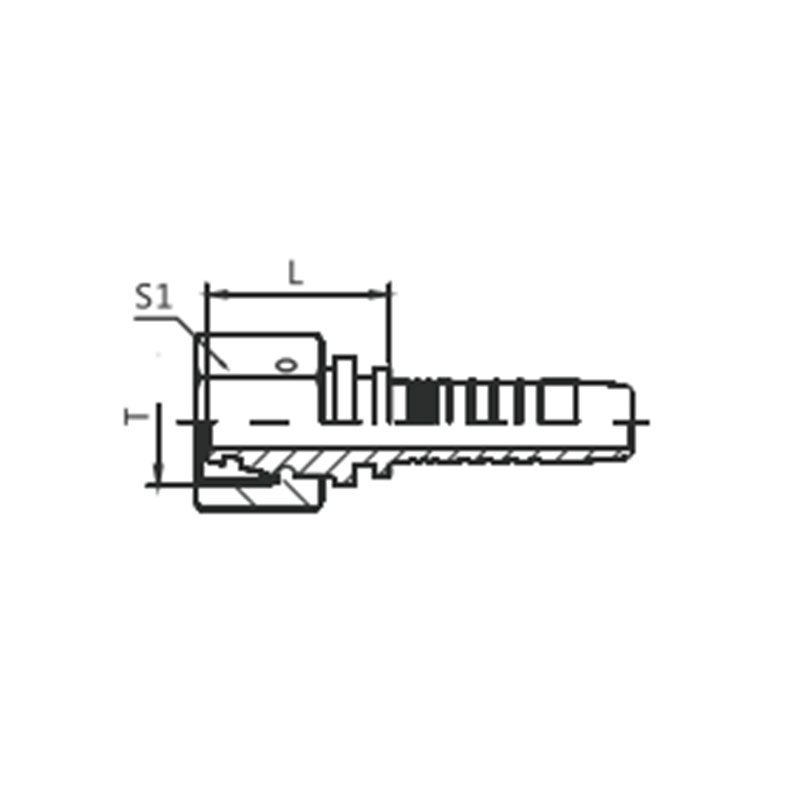

Metric Female 24°Cone 0-Ring L.T. ISO 12151-2-DIN3865
PART NO. |
T |
HOSE BORE |
TUBE O.D |
DIMENSIONS |
||||
THREAD T |
DN |
DASH |
L |
H |
|
S1 |
||
S20411-12-04W |
M12X1.5 |
6 |
04 |
6 |
39.8 |
16 |
|
14 |
S20411-14-04T |
M14X1.5 |
6 |
04 |
8 |
39.8 |
16 |
|
17 |
S20411-14-05W |
M14X1.5 |
8 |
05 |
8 |
40.7 |
17 |
|
17 |
S20411-14-06W |
M14X1.5 |
10 |
06 |
8 |
44.5 |
18.5 |
|
17 |
S20411-16-04T |
M16X1.5 |
6 |
04 |
10 |
40.8 |
17 |
|
19 |
S20411-16-05T |
M16X1.5 |
8 |
05 |
10 |
40.7 |
17 |
|
19 |
S20411-16-06W |
M16X1.5 |
10 |
06 |
10 |
44.5 |
18.5 |
|
19 |
S20411-18-05T |
M18X1.5 |
8 |
05 |
12 |
42.2 |
18.5 |
|
22 |
S20411-18-06T |
M18X1.5 |
10 |
06 |
12 |
44.5 |
18.5 |
|
22 |
S20411-18-08W |
M18X1.5 |
13 |
08 |
12 |
50.8 |
19.5 |
|
22 |
S20411-22-08T |
M22X1.5 |
13 |
08 |
15 |
50.8 |
19.5 |
|
27 |
S20411-22-10W |
M22X1.5 |
16 |
10 |
15 |
62.7 |
23.5 |
|
27 |
S20411-26-10T |
M26X1.5 |
16 |
10 |
18 |
62.7 |
23.5 |
|
32 |
S20411-26-12W |
M26X1.5 |
19 |
12 |
18 |
68.2 |
25.5 |
|
32 |
S20411-30-10T |
M30X2 |
16 |
10 |
22 |
64.7 |
25.5 |
|
36 |
S20411-30-12T |
M30X2 |
19 |
12 |
22 |
68.2 |
25.5 |
|
36 |
S20411-30-16W |
M30X2 |
25 |
16 |
22 |
81.4 |
32 |
|
36 |
S20411-36-12T |
M36X2 |
19 |
12 |
28 |
74.7 |
32 |
|
41 |
S20411-36-14T |
M36X2 |
22 |
14 |
28 |
79.5 |
34 |
|
41 |
S20411-36-16T |
M36X2 |
25 |
16 |
28 |
81.4 |
32 |
|
41 |
S20411-36-20W |
M36X2 |
32 |
20 |
28 |
98.8 |
38 |
|
41 |
S20411-45-16T |
M45X2 |
25 |
16 |
35 |
87.4 |
38 |
|
50 |
S20411-45-20T |
M45X2 |
32 |
20 |
35 |
98.8 |
38 |
|
50 |
S20411-45-24W |
M45X2 |
38 |
24 |
35 |
115.6 |
44.5 |
|
50 |
S20411-52-20T |
M52X2 |
32 |
20 |
42 |
105.3 |
44.5 |
|
60 |
S20411-52-24T |
M52X2 |
38 |
24 |
42 |
115.6 |
44.5 |
|
60 |
S20411-52-32W |
M52X2 |
51 |
32 |
42 |
137.6 |
57.6 |
|
60 |
Note:1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is S20412-XX-XX. |
||||||||
