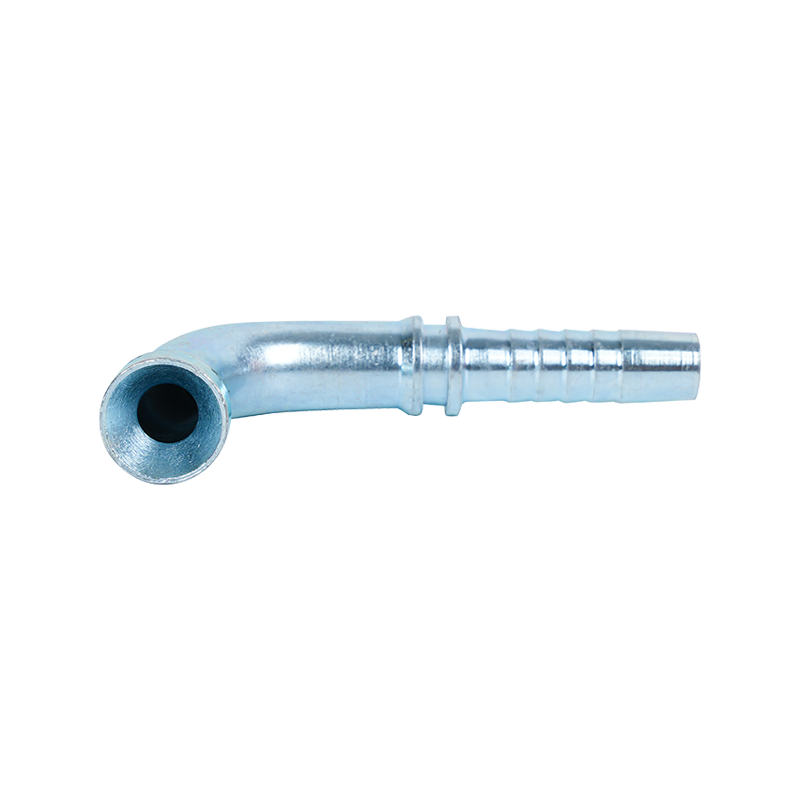

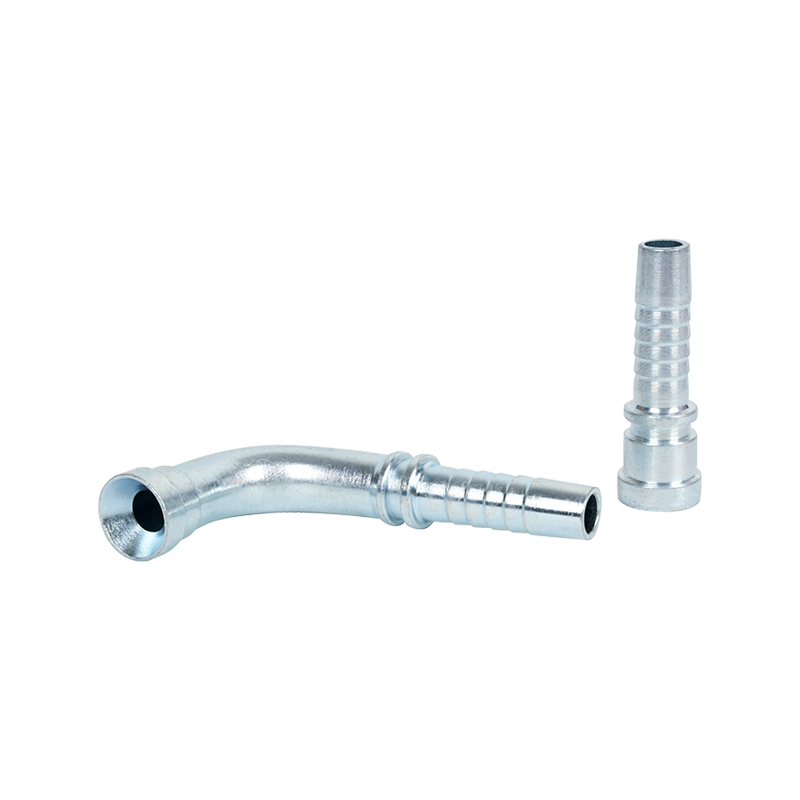

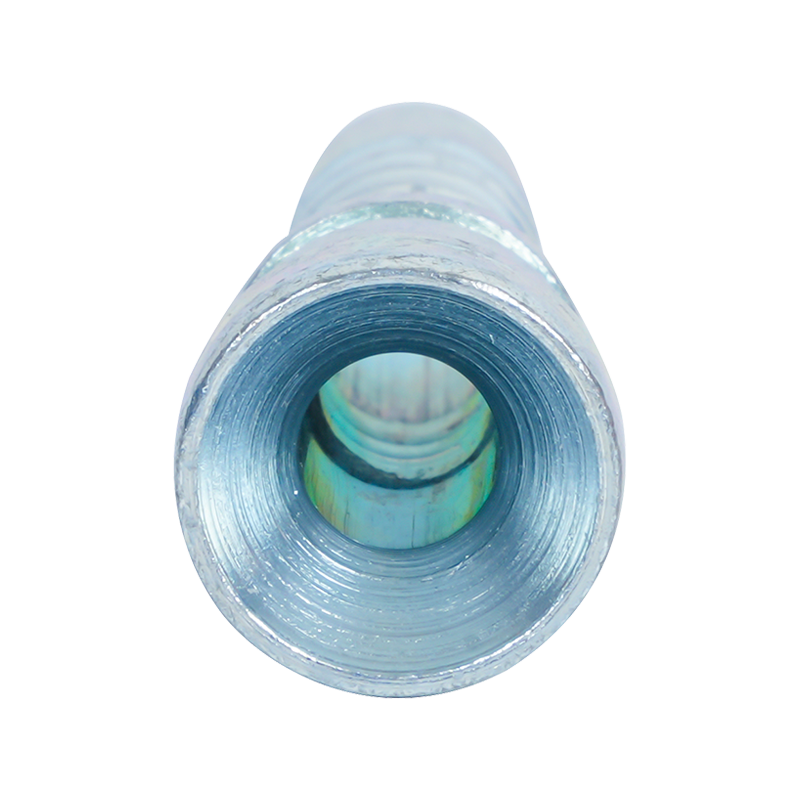

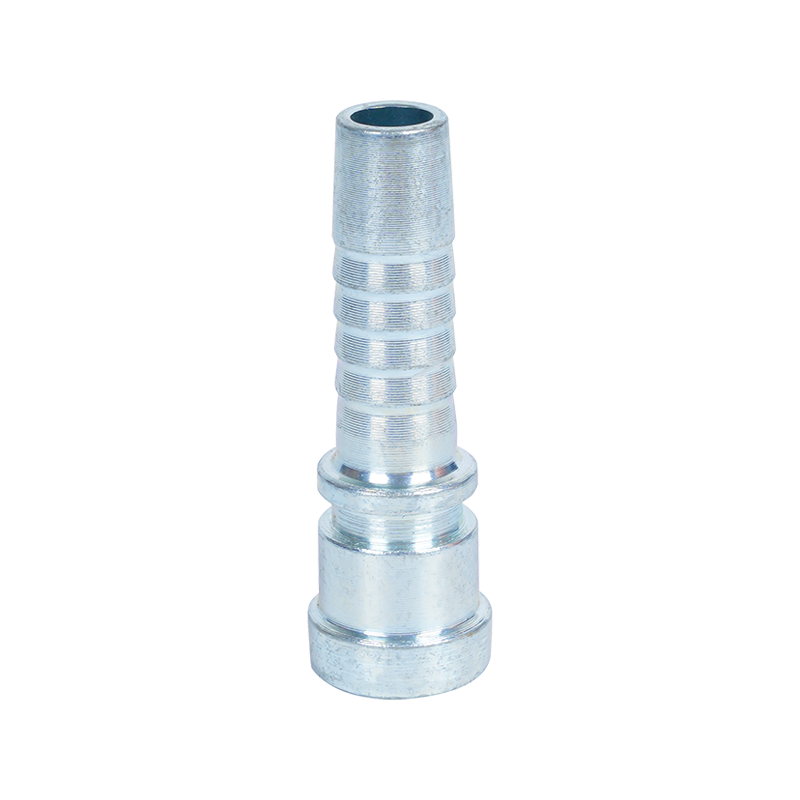

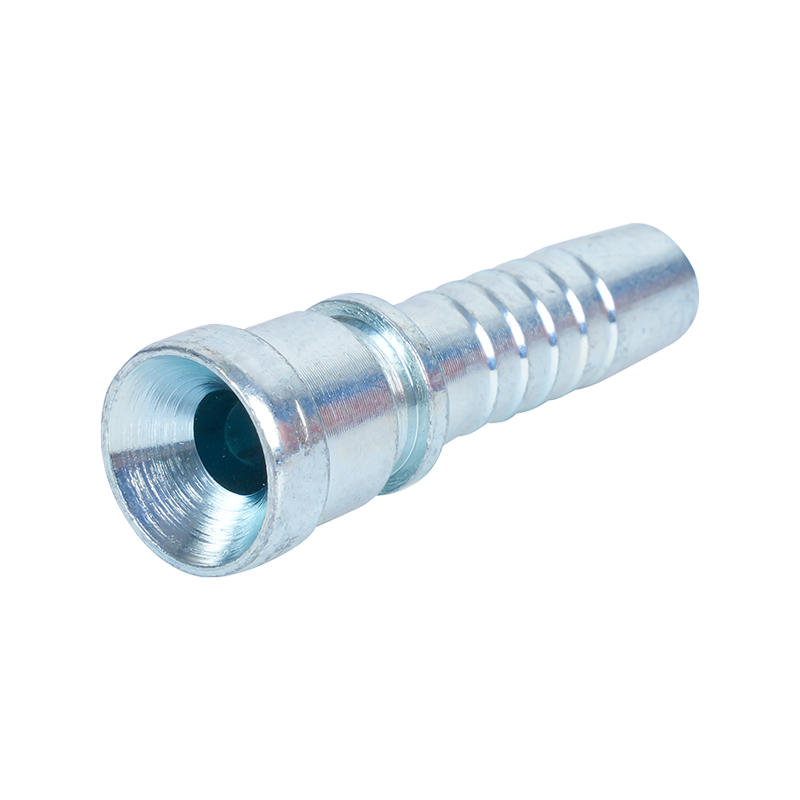

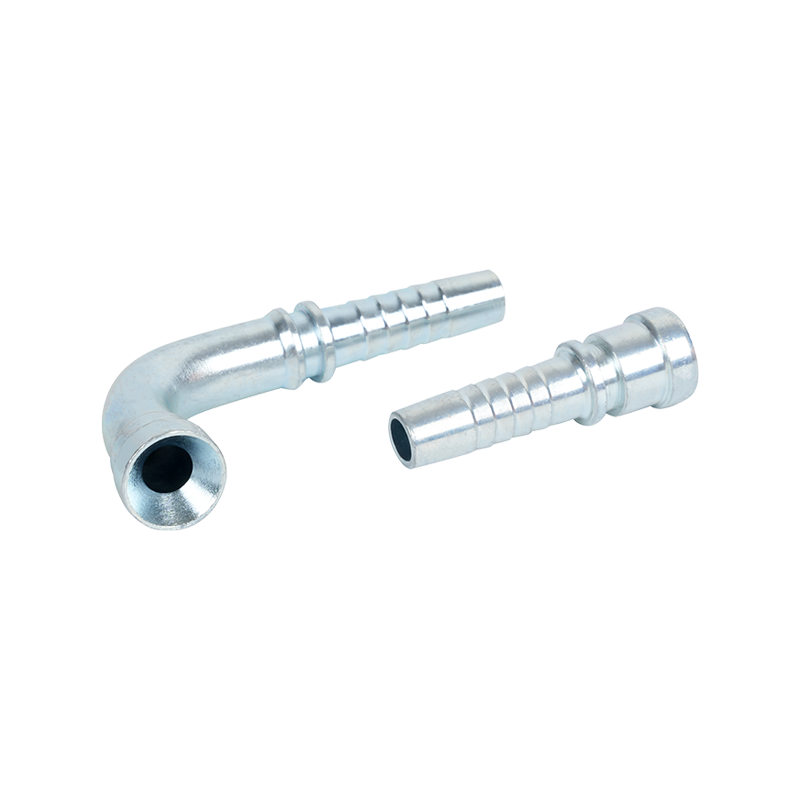

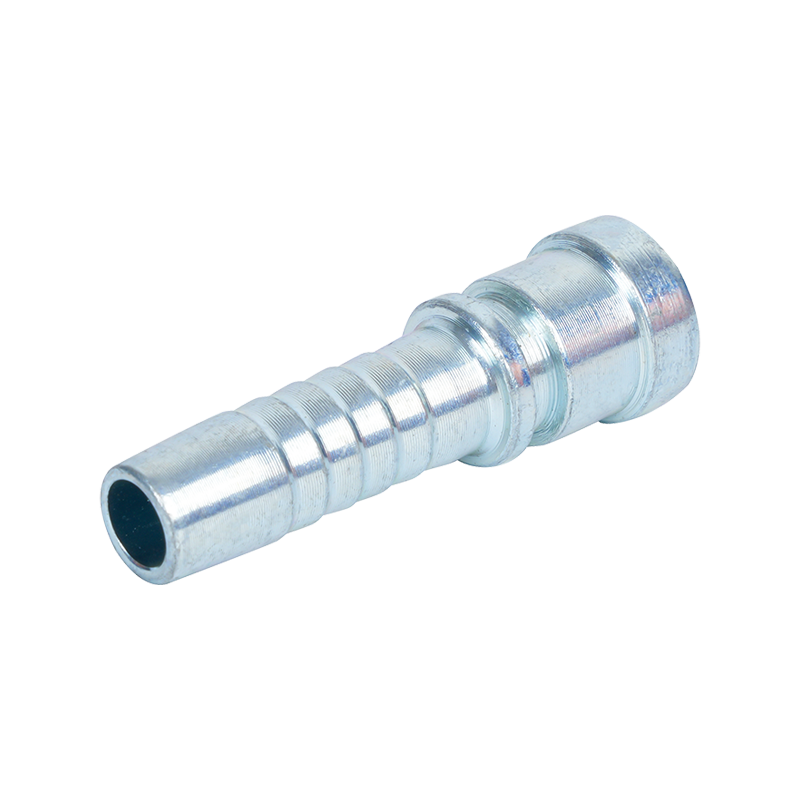

GB Metric Female 74°Cone Seat
Reference REF.GB/T 9065.1
PART NO. |
T |
HOSE BORE |
|

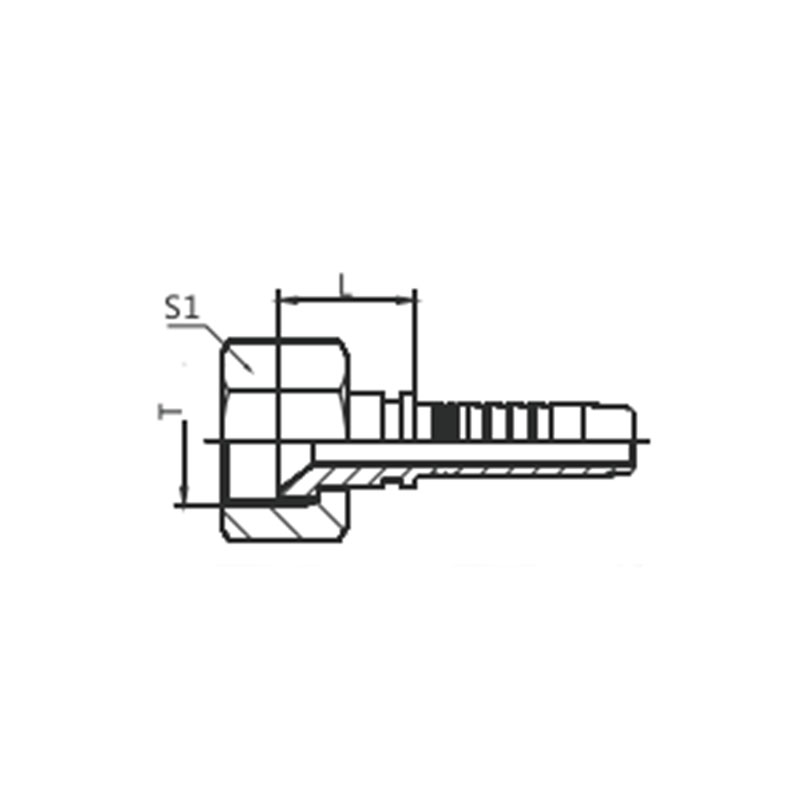

DIMENSIONS |
||||
THREAD T |
DN |
DASH |
|
L |
|
|
S1 |
|
S20711-12-04 |
M12X1.5 |
6 |
04 |
|
14. 5 |
|
|
17 |
S20711-14-04T |
M14X1.5 |
6 |
04 |
|
15. 5 |
|
|
17 |
S20711-14-05 |
M14X1.5 |
8 |
05 |
|
15. 5 |
|
|
19 |
S20711-14-06 |
M14X1.5 |
10 |
06 |
|
15. 5 |
|
|
19 |
S20711-16-04T |
M16X1.5 |
6 |
04 |
|
16. 5 |
|
|
19 |
S20711-16-05T |
M16X1.5 |
8 |
05 |
|
16. 5 |
|
|
19 |
S20711-16-06 |
M16X1.5 |
10 |
06 |
|
16. 5 |
|
|
22 |
S20711-18-05T |
M18X1.5 |
8 |
05 |
|
18. 5 |
|
|
22 |
S20711-18-06T |
M18X1.5 |
10 |
06 |
|
17. 5 |
|
|
22 |
S20711-20-06T |
M20X1.5 |
10 |
06 |
|
16 |
|
|
24 |
S20711-22-08T |
M22X1.5 |
13 |
08 |
|
18. 5 |
|
|
27 |
S20711-27-08T |
M27X1.5 |
13 |
08 |
|
20. 5 |
|
|
32 |
S20711-27-10T |
M27X1.5 |
16 |
10 |
|
21. 5 |
|
|
32 |
S20711-30-10T |
M30X1.5 |
16 |
10 |
|
21. 5 |
|
|
36 |
S20711-30-12T |
M30X1.5 |
19 |
12 |
|
21. 5 |
|
|
36 |
S20711-33-12T |
M33X2 |
19 |
12 |
|
22 |
|
|
41 |
S20711-36-12T |
M36X2 |
19 |
12 |
|
21 |
|
|
41 |
S20711-36-14T |
M36X2 |
22 |
14 |
|
21 |
|
|
41 |
S20711-36-16T |
M36X2 |
25 |
16 |
|
22 |
|
|
41 |
S20711-39-16T |
M39X2 |
25 |
16 |
|
23. 5 |
|
|
46 |
S20711-42-16T |
M42X2 |
25 |
16 |
|
23. 5 |
|
|
50 |
S20711-45-20T |
M45X2 |
32 |
20 |
|
25 |
|
|
55 |
S20711-52-24T |
M52X2 |
38 |
24 |
|
25 |
|
|
60 |
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is S20712-XX-XX. |
