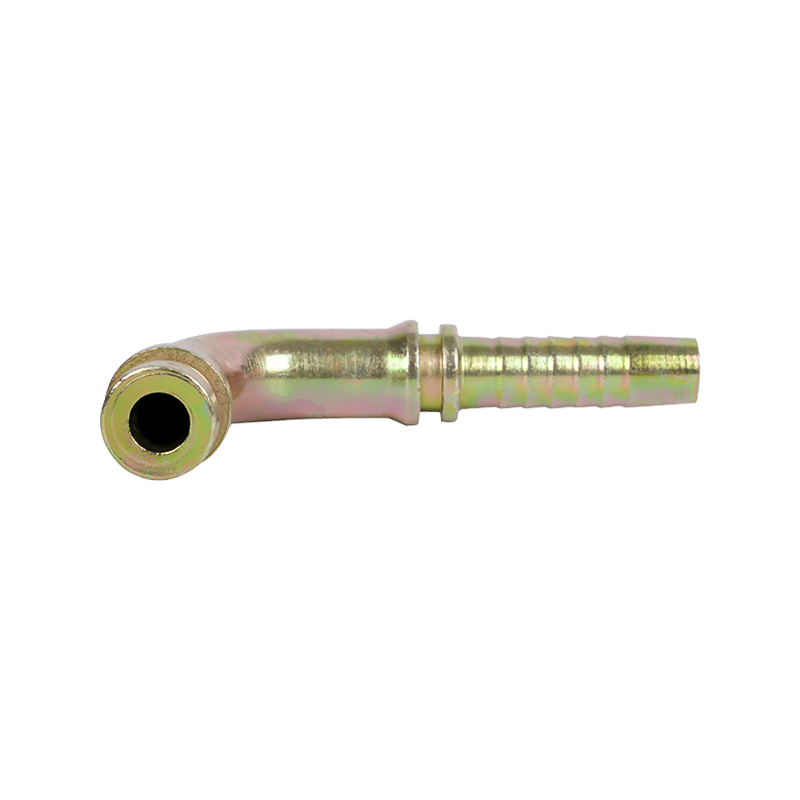

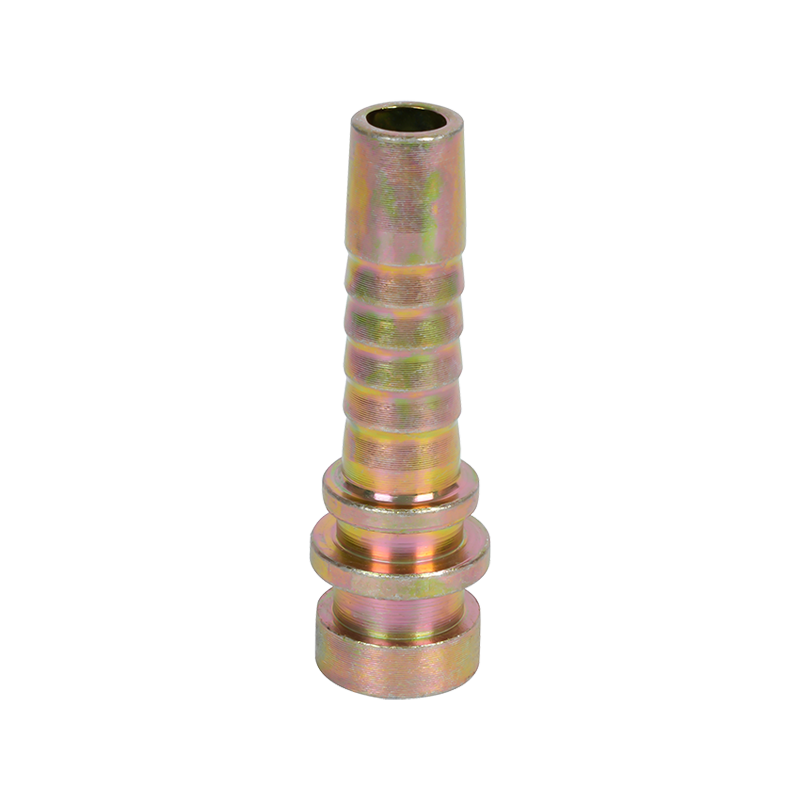

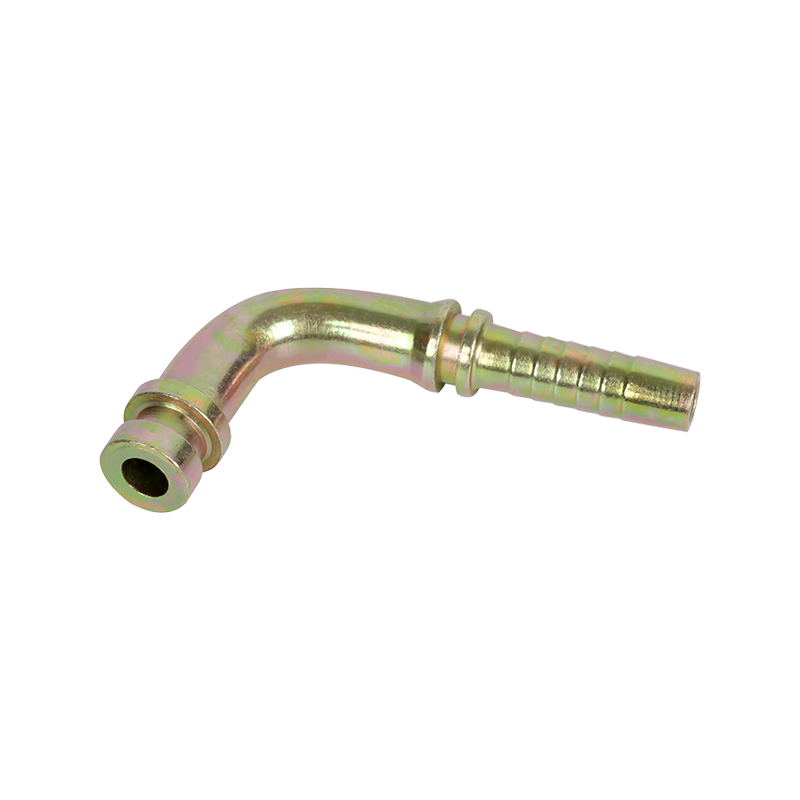

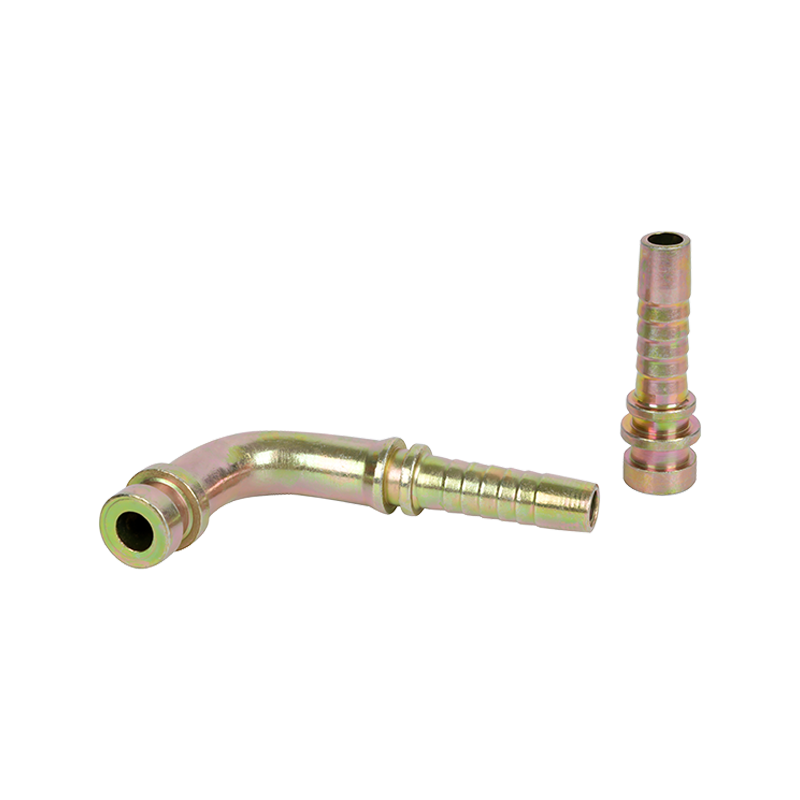

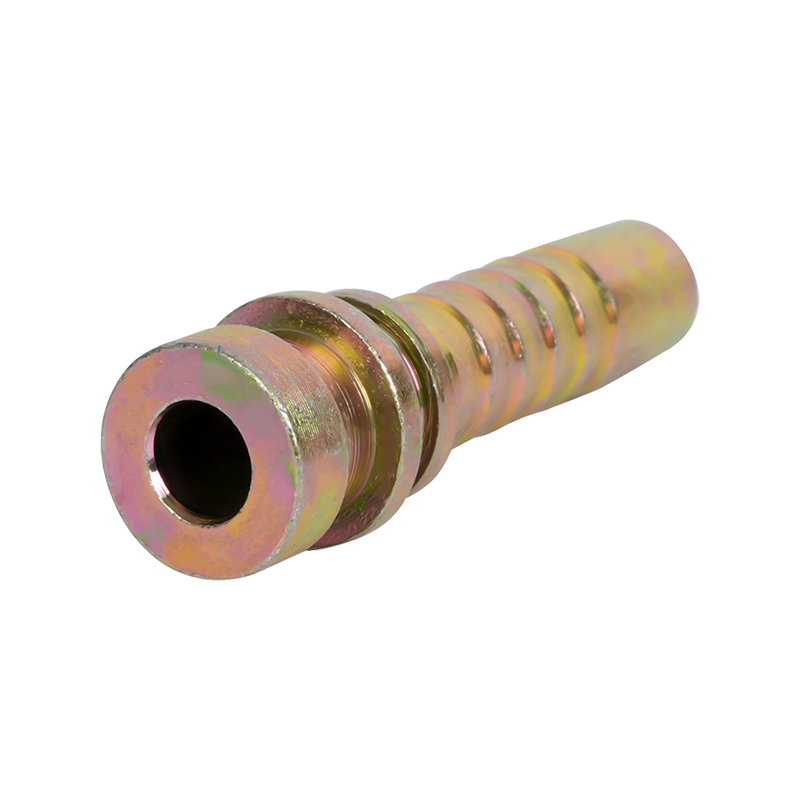

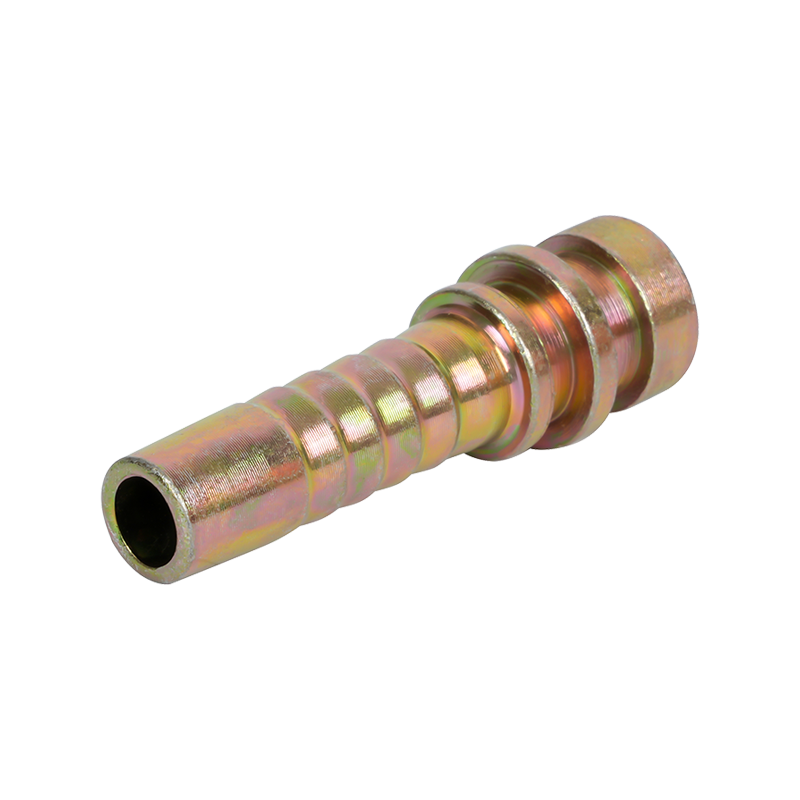

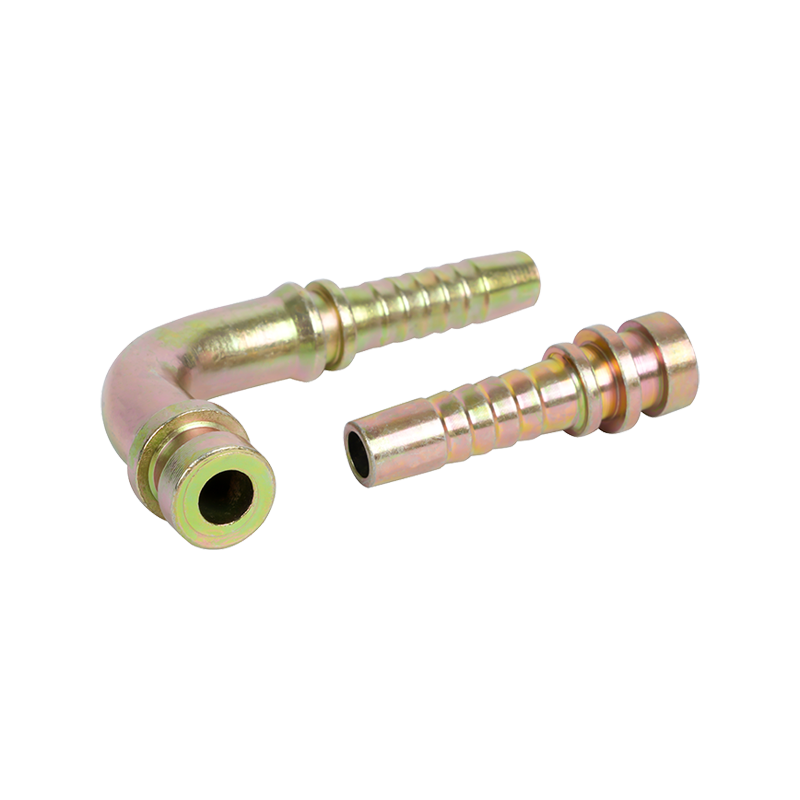

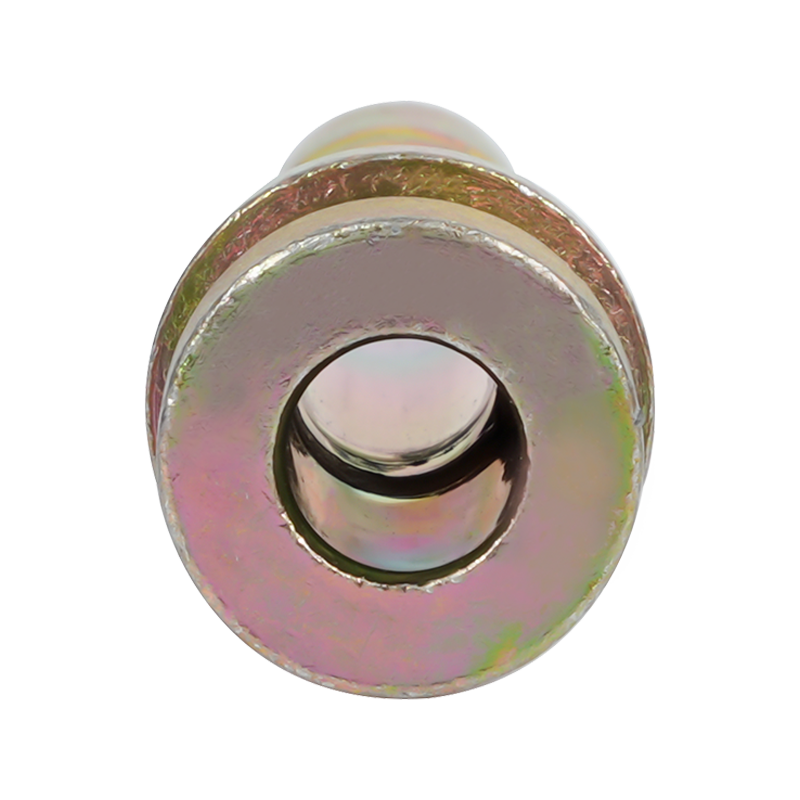

PART NO. |
THREADE |
HOSE BORE |

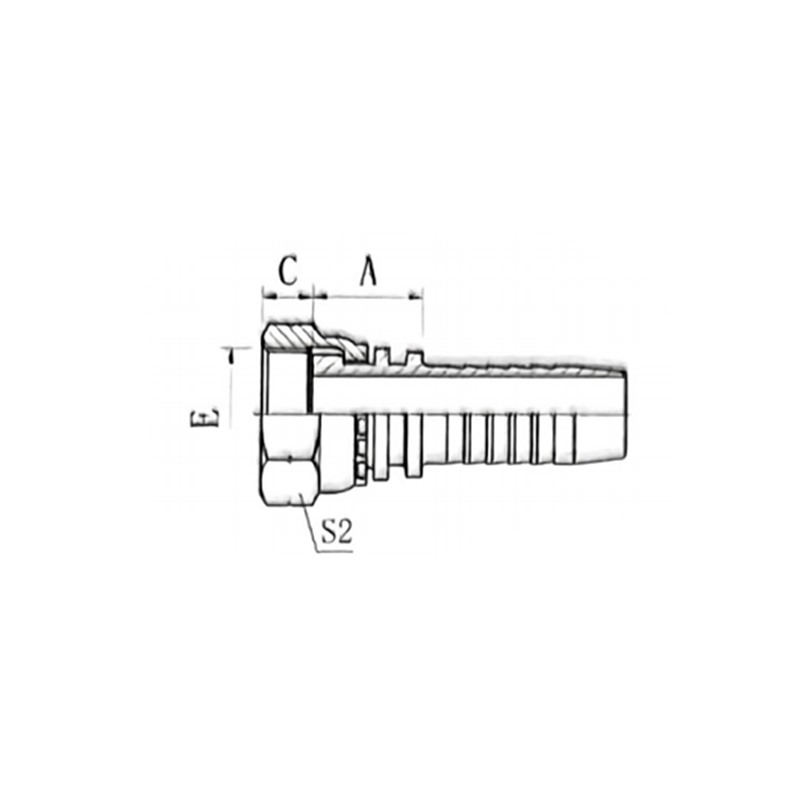

DIMENSIONS |
|||
DN |
DASH |
A |
C |
S2 |
||
22211-04-04 |
G1/4"X19 |
6 |
04 |
15.5 |
8 |
19 |
22211-04-06 |
G1/4"X19 |
10 |
06 |
15.5 |
8 |
19 |
22211-06-04 |
G3/8"X19 |
6 |
04 |
17 |
9 |
22 |
22211-06-05 |
G3/8"X19 |
8 |
05 |
17 |
9 |
22 |
22211-06-06 |
G3/8"X19 |
10 |
06 |
16.5 |
9 |
22 |
22211-06-08 |
G3/8"X19 |
12 |
08 |
17.5 |
9 |
22 |
22211-08-06T |
G1/2"X14 |
10 |
06 |
18 |
10.5 |
27 |
22211-08-08 |
G1/2"X14 |
12 |
08 |
18.5 |
10.5 |
27 |
22211-10-08 |
G5/8"X14 |
12 |
08 |
20 |
12 |
30 |
22211-10-10 |
G5/8"X14 |
16 |
10 |
21 |
12 |
30 |
2221M2-08T |
G3/4"X14 |
12 |
08 |
20.5 |
13.5 |
32 |
22211-12-10 |
G3/4"X14 |
16 |
10 |
21.5 |
13.5 |
32 |
22211-12-12 |
G3/4"X14 |
20 |
12 |
21.5 |
13.5 |
32 |
22211-16-12T |
G1"X11 |
20 |
12 |
21.5 |
15.5 |
4t |
22211-16-16 |
G1"X11 |
25 |
16 |
23 |
15.5 |
41 |
22211-20-20W |
G1.1/4"X11 |
32 |
20 |
26 |
15.5 |
50 |
22211-24-24W |
G1.1/2"X11 |
40 |
24 |
27.5 |
17.5 |
55 |
22211-32-32W |
G2"X11 |
50 |
32 |
30.5 |
23 |
70 |
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 22212-xx-xx. |
